Antenna Coupler

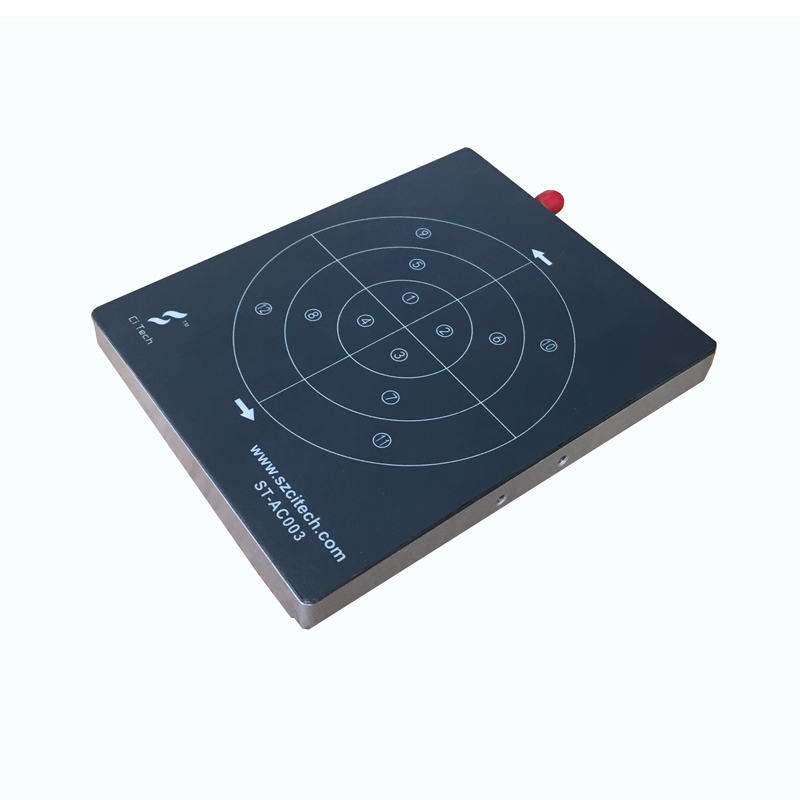

ST-AC003 6G Antenna Coupler

Range of application:GSM, PCS, DCS, CDMA, WCDMA, CDMA2000, TD-SCDMA, 5G,Wi-Fi, Bluetooth, GPS, DAB, Remote control car, RFID,TPRS,ZigBee, UWB, WiMax, LTE and a variety of small wireless communication equipment of the research, production, quality inspection, test and certification department test use


order

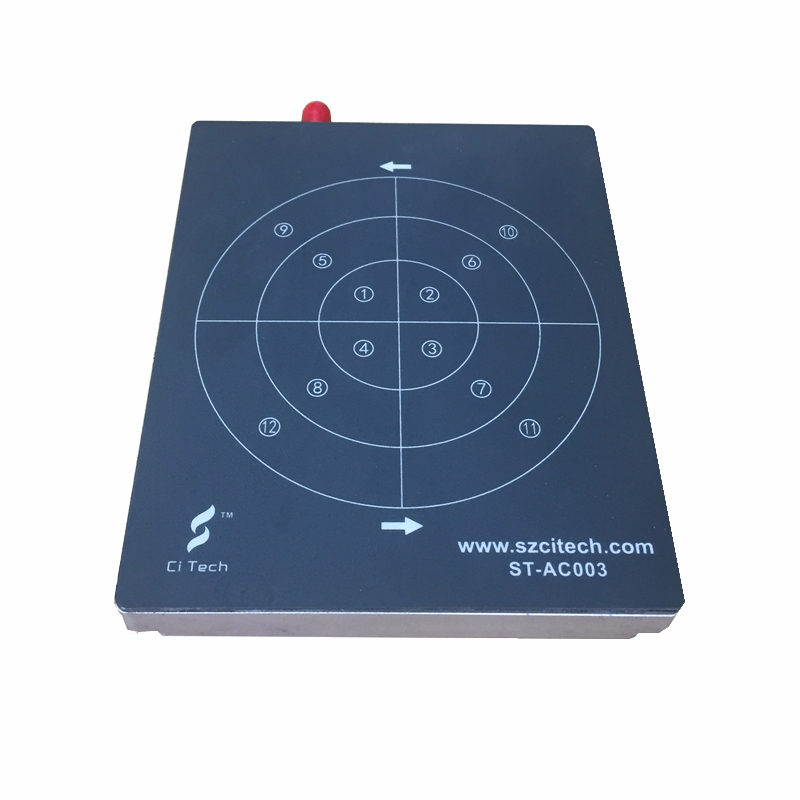

ST-AC003 Flat Type Antenna Coupler

Application

 fundamental principle and functiaon :

Antenna coupler is born with the development of radio terminals in recent years, because the signal is too strong for ordinary antenna , it will have a reflective resonance, affect the test accuracy. Antenna coupler can be smooth in receiving and transmitting signals, can achieve product batch testing and product development needs. Capacitors and inductors on the circuit board converts the energy of electromagnetic waves, and spread in a fixed direction instead of external electromagnetic fields can also be converted to electrical energy.  As the best means of receiving signals on the external antenna , and energy.

 Features

1. Realize the radiation mode OTA measurement

 2. Can reproduce the consistency of the measurement

Range of application:GSM, PCS, DCS, CDMA, WCDMA, CDMA2000, TD-SCDMA, Wi-Fi, Bluetooth, GPS, DAB, Remote control car, RFID,TPRS,ZigBee, UWB, WiMax, LTE and a variety of small wireless communication equipment of the research, production, quality inspection, test and certification department test use

Outer Dimension

130(W) × 106(D) × 15.6(H)mm

Material

Aluminum

Weight)

about 300g

Frequency Range

800 ~ 6000MHz

Insertion Loss

7 ~ 18dB

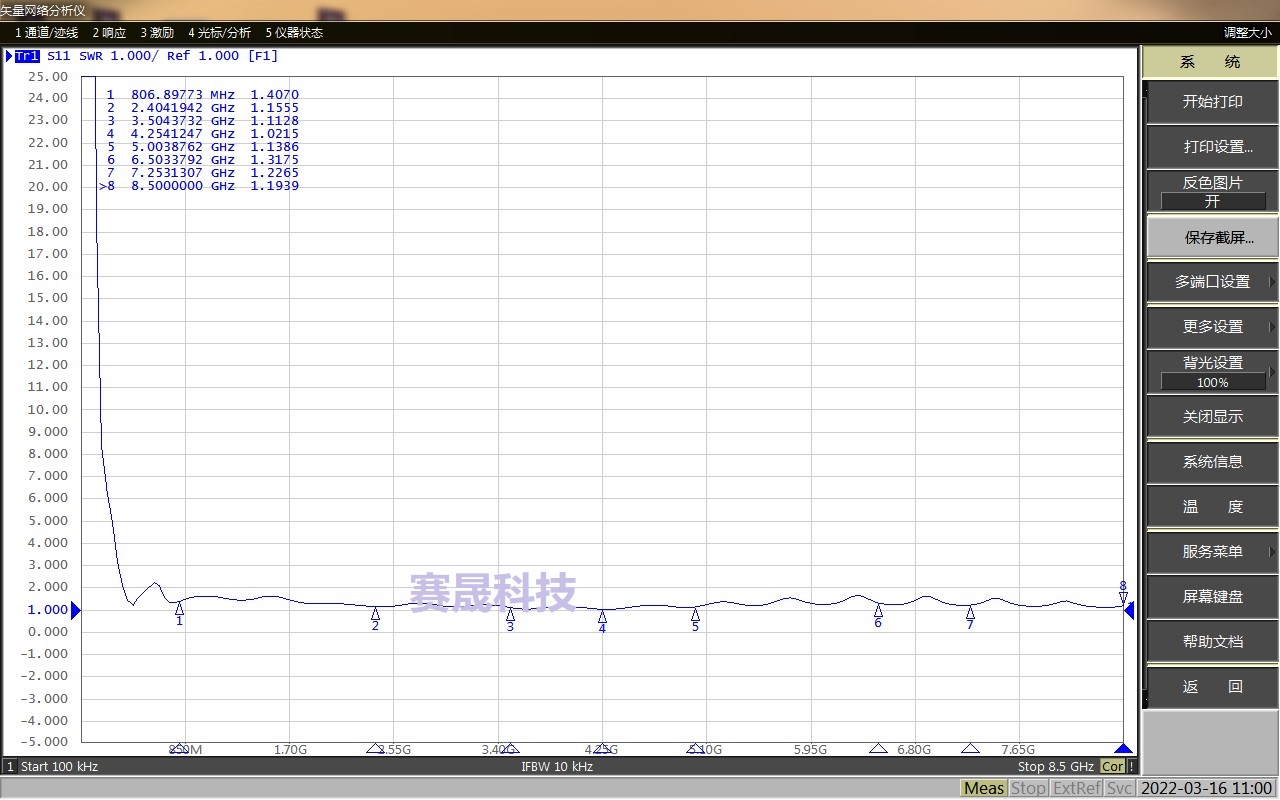

VSWR

Better than 1 : 2.2 (Typ1.8)

RF Connector

SMA(f)

polarization mode

LHCP
