Manual sound box

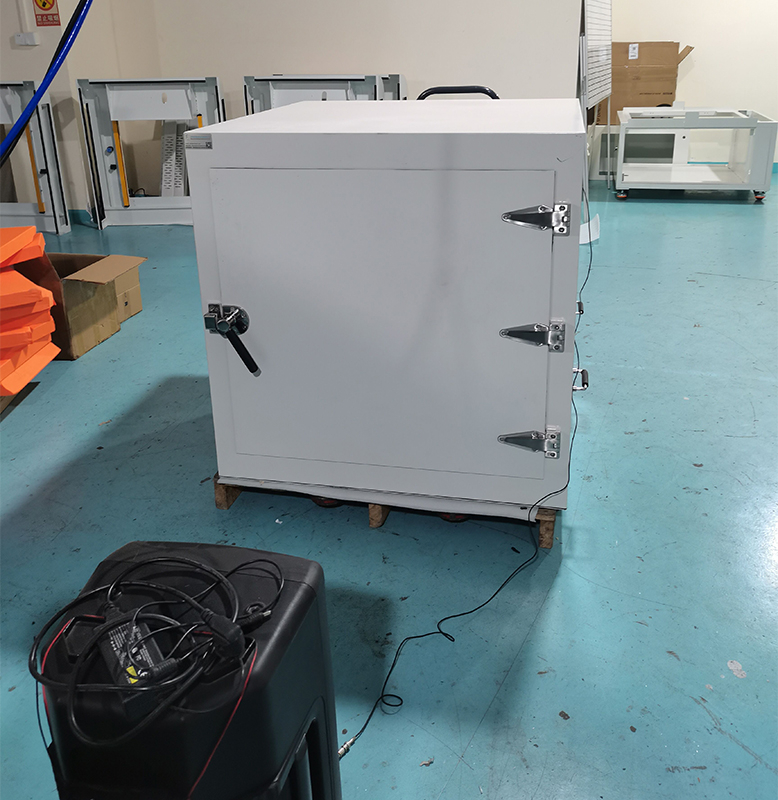

ST-SG7070 acoustic chamber/soundproof box

Soundproof Volume Outer environment noise pressure level:80dB(A)inside noise :30-35dB(A)

order

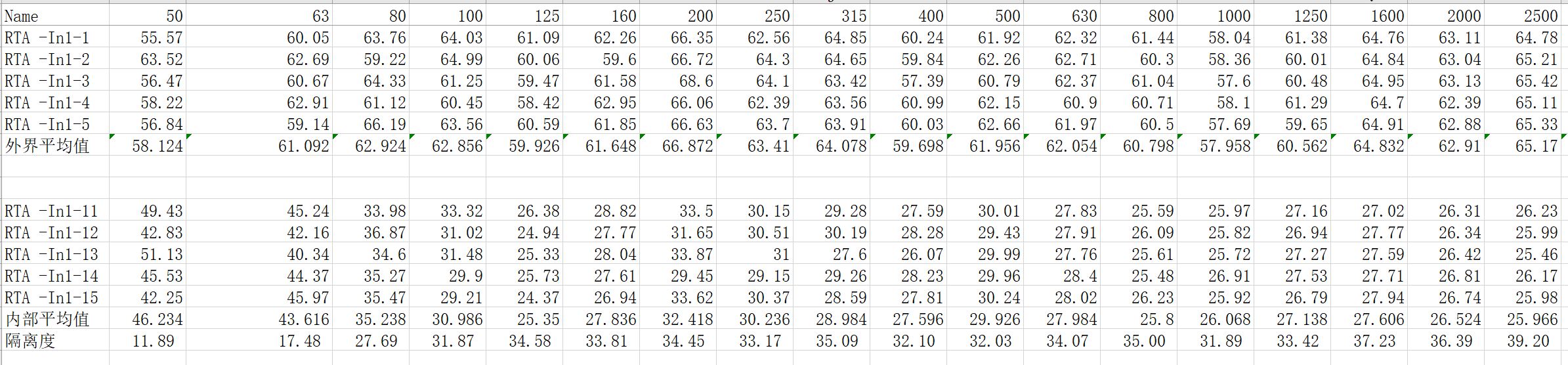

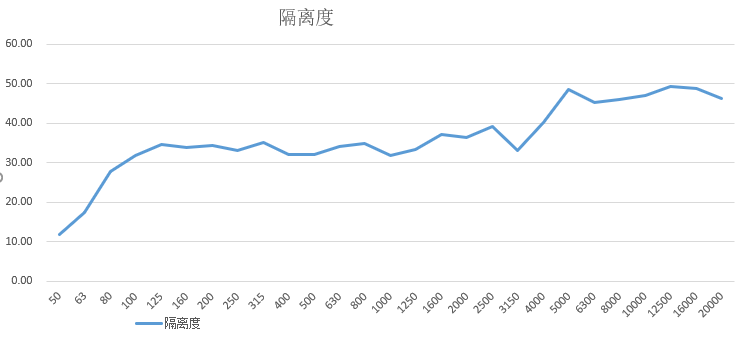

CiTech can specially provide a steady testing environment with noise floor low as 25~30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound-isolated box with special size and fixture, and provide integrated testing system solutions.

Application


The main function and scope of application

Providing a sound insulation testing environment for products

Operation Mode

Manual operation

Inner dimension

outer dimension

 (W)700*(D)700*(H)700mm

 (W)1000*(D)1000*(H)1000mm

Material

metal   plate

 Surface Color

 Grey   white

 Soundproof solution

Soundproof Volume Outer environment noise pressure level:80dB(A)inside noise :30-35dB(A)
