Pneumatic shielding box

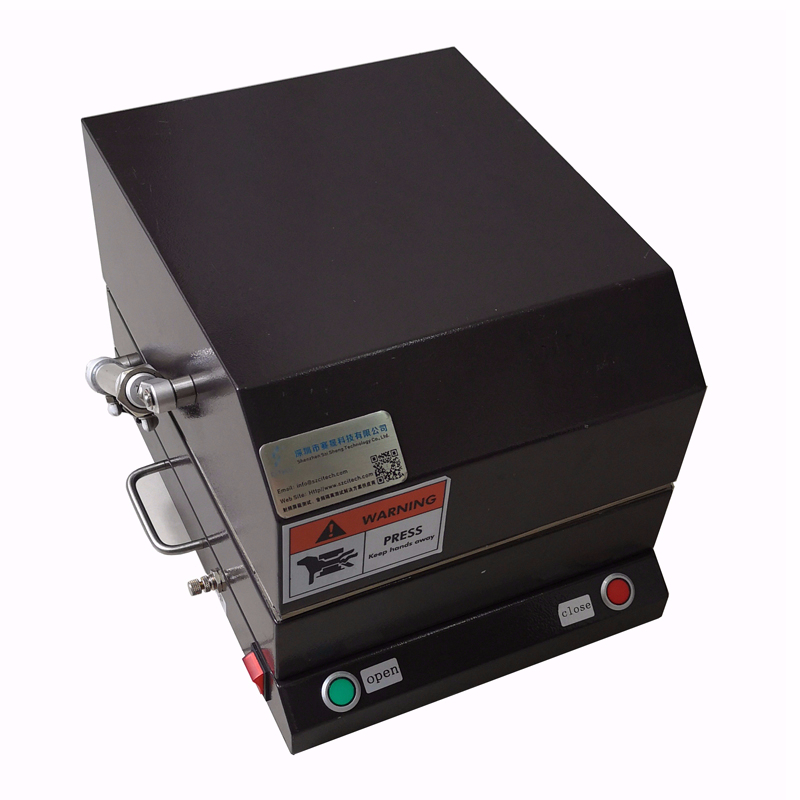

ST-SP008 RF SHIELDING BOX

Reliable high RF shielding up to 12GHz

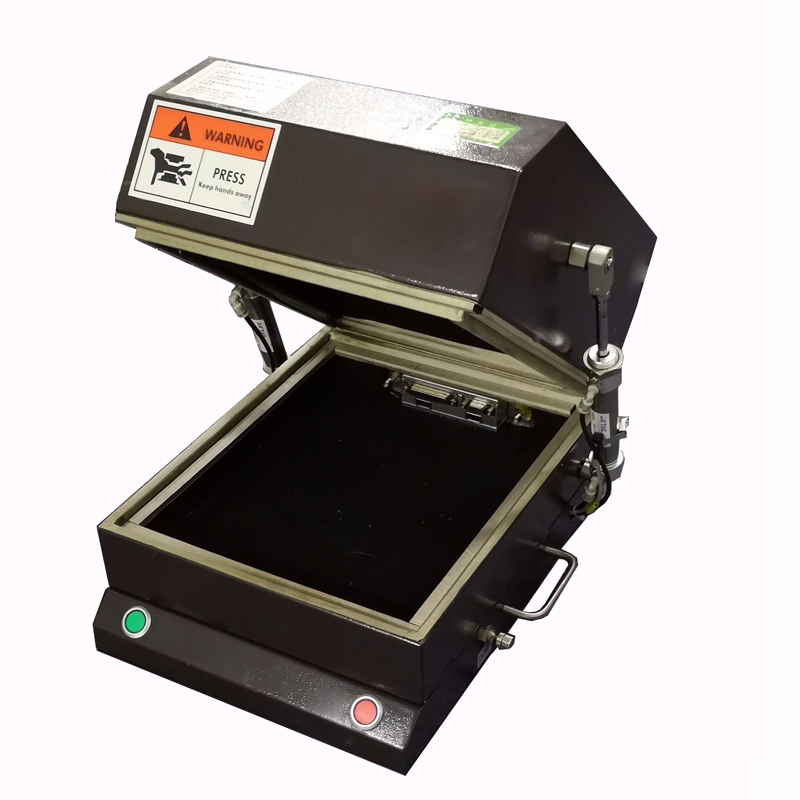

Pneumatic operation

Easily customizable to meet various test needs

EMI filters on all Data and Power lines

Dual pressure control and Lid down sensor for safety


order

Application

ST-SP008 RF Shielding Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D , service QC and manufacturing

Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMBGSMGPSLTEWi-FiWi-Max CDMACDMA2000WCDMATD-SCDMA3G/4G/5G mobileWLANBluetoothPDAReflexWi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.



Features

Ø  Reliable high RF shielding up to 12GHz

Ø  Pneumatic operation

Ø  Easily customizable to meet various test needs

Ø  EMI filters on all Data and Power lines

Ø  Dual pressure control and Lid down sensor for safety


Specification

Inner Dimension

(L)290 *(W)230*(H)180 mm

Outer Dimension

(L)395 *(W)335 *(H)240mm

Shielding Isolation

800MHz~8.5GHz>70dB

Shielding Material

Microwave Absorber

Material

metal plate

Weight

approx.12kg

Surface Color

coffee ( According to the   customer request custom color)

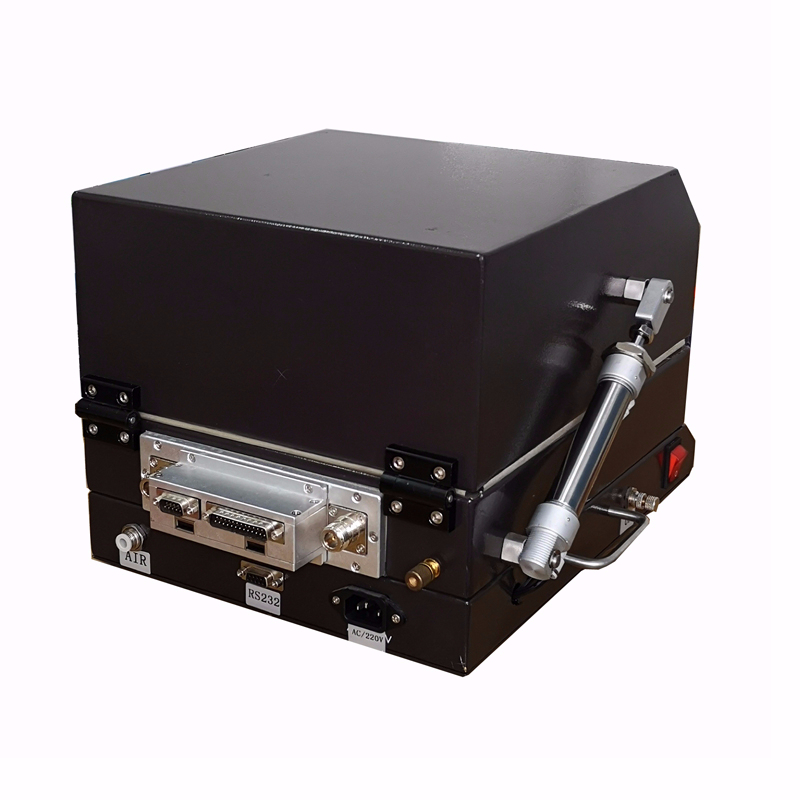

I/O Connectors

N-SMA*2, DB25*1,USB*2,RS232*1
