Pneumatic sound box

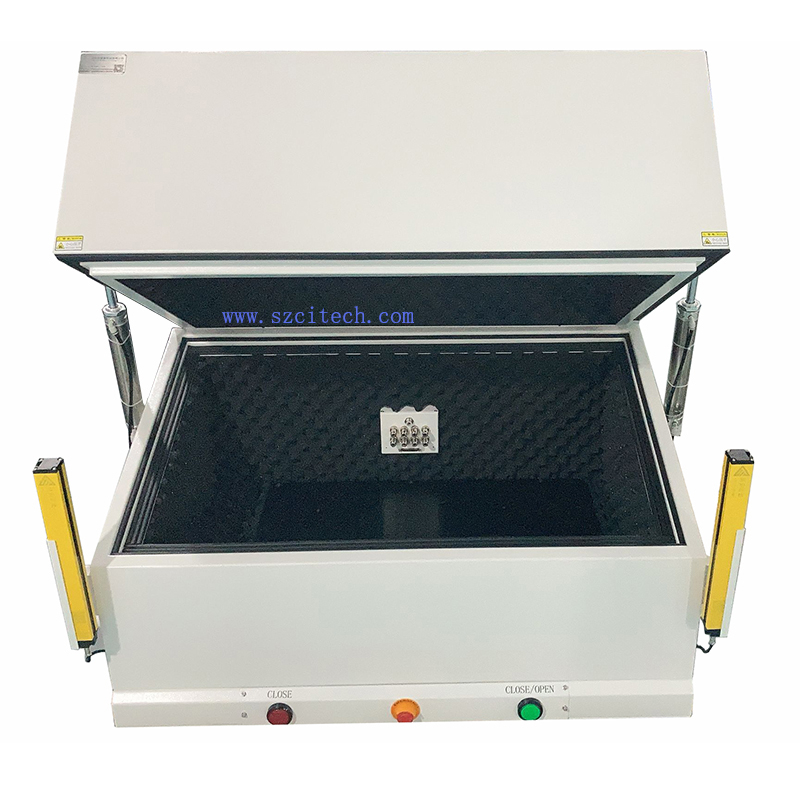

ST-SG955 soundproofing box/ acoustic chamber

szcitech can specially provide a steady testing environment with noise floor low as 30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound-isolated box with special size and fixture, and provide integrated testing system solutions.




order

ST-SG955 soundproofing box/ acoustic chamber


The main function and scope of application

Providing a sound insulation testing environment for products



Operation Mode

Pneumatic

Inner dimension

 (L)900*(W)500*(H)500mm

Material

metal   plate

 Surface Color

 Grey   white

 Soundproof solution

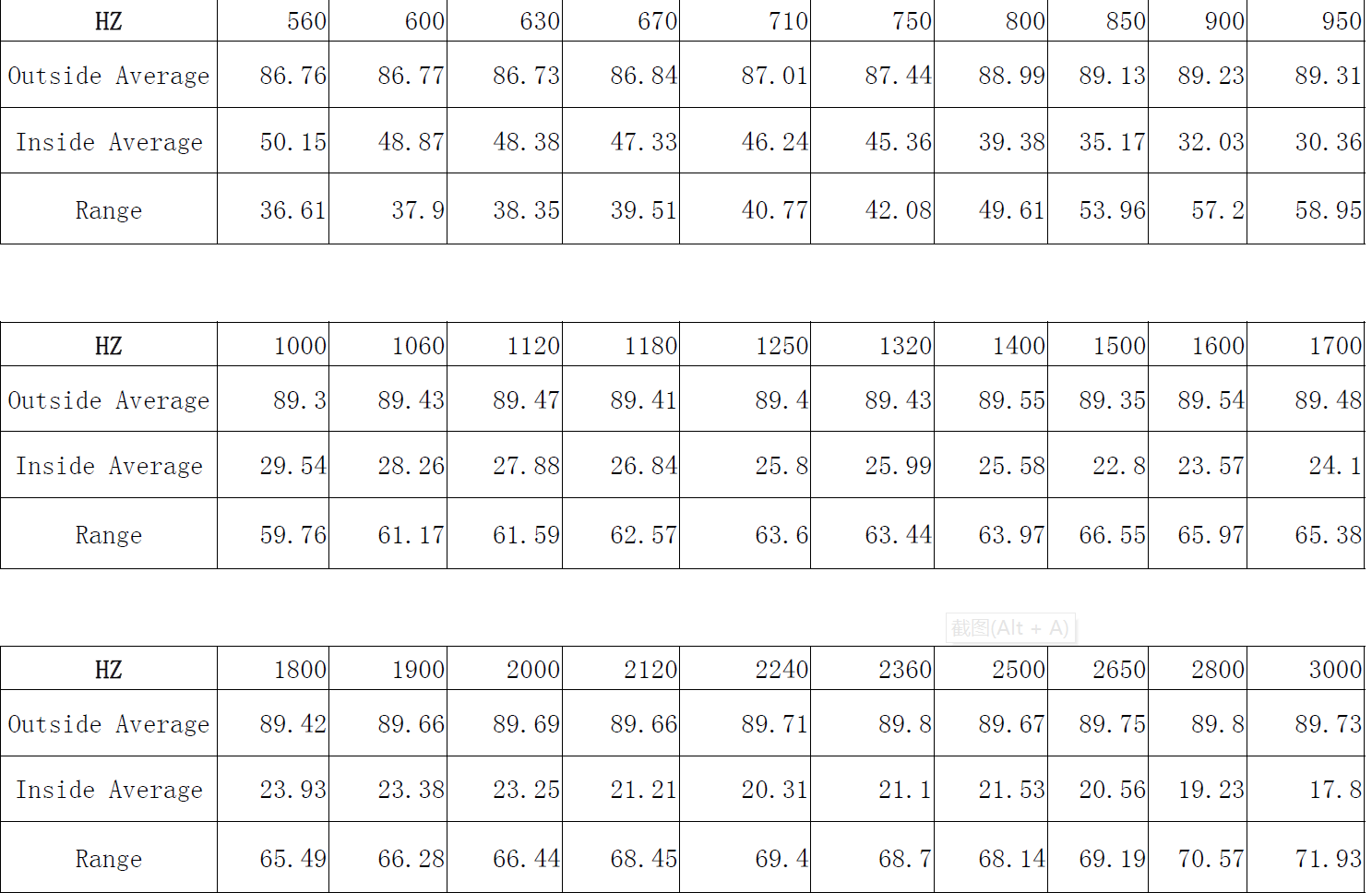

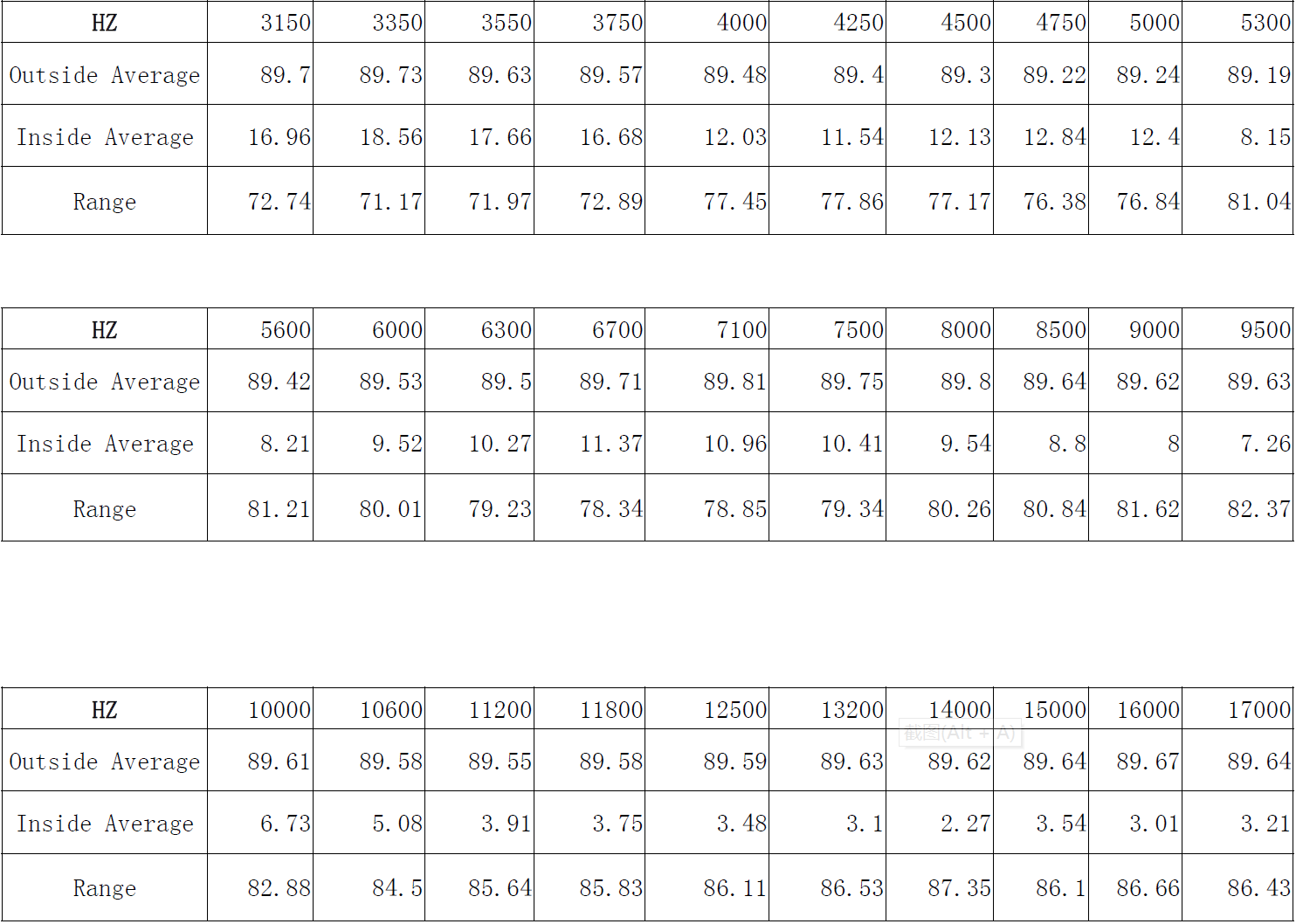

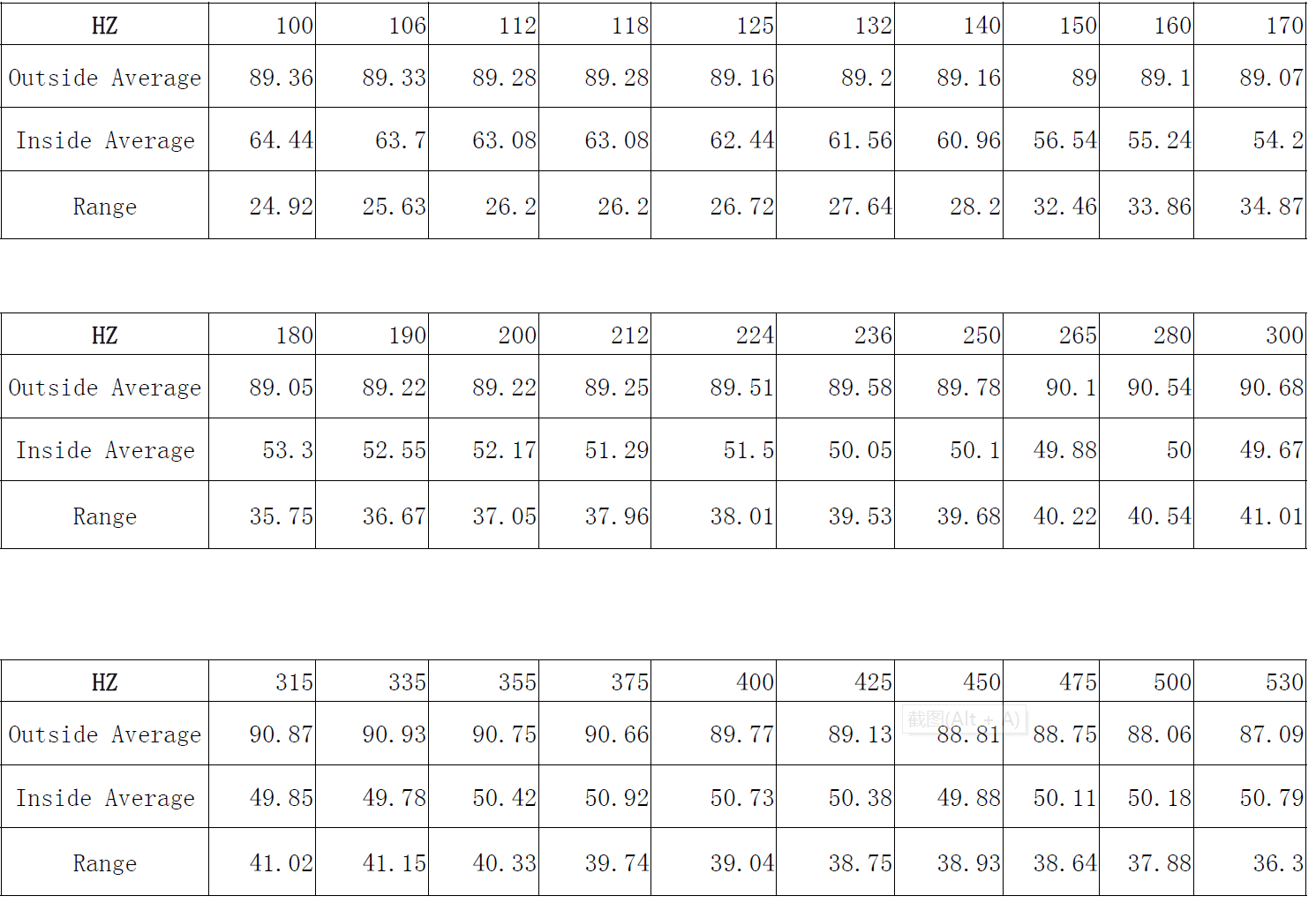

100-300hz>25dB,300-700hz>35dB,700-20khz>40 dB

I/O(connector)
