Pneumatic sound box

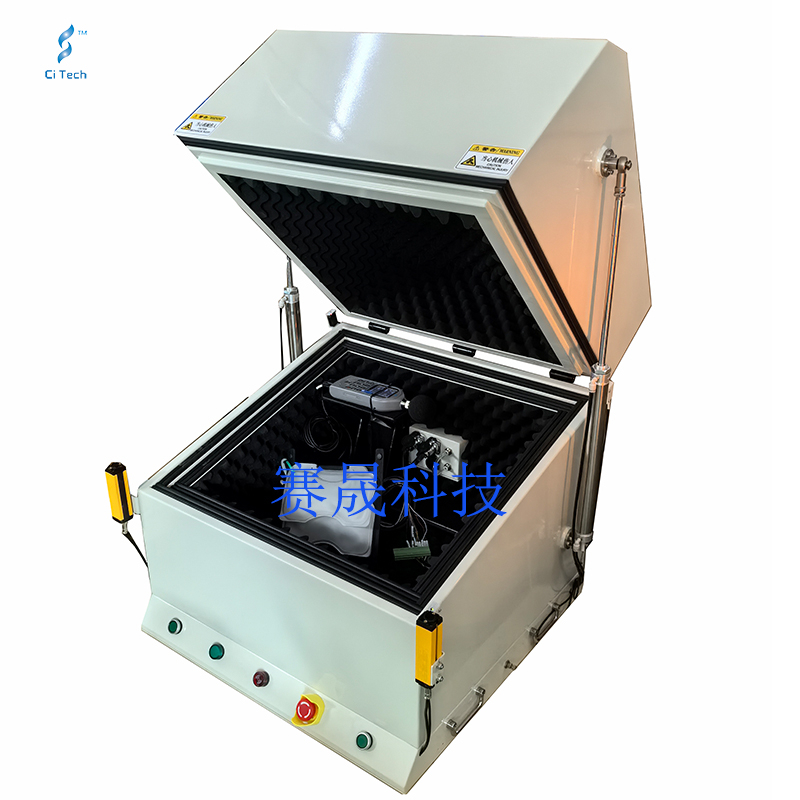

ST-SG010 soundproofing box/ acoustic chamber

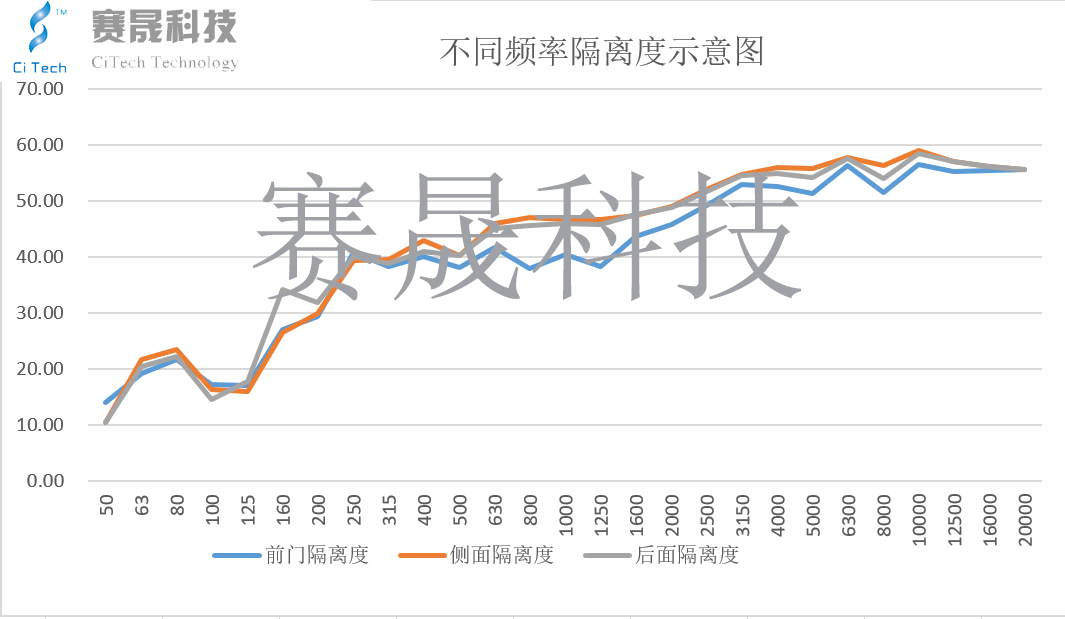

CiTech can specially provide a steady testing environment with noise floor low as 30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound-isolated box with special size and fixture, and provide integrated testing system solutions.

order

ST-SG010 soundproofing box/ acoustic chamber/sound box

Application

The main function and scope of application

Providing a sound insulation testing environment for products



Operation Mode

Pneumatic

Inner dimension

 (W)500*(D)450*(H)450mm

Material

metal   plate

 Surface Color

 Grey   white

 Soundproof solution

1、 Soundproof Volume Outer environment noise pressure level:

       A weighted sound pressure level


80dBA inside noise 40dBA


We can customize acoustic chamber with different isolation degrees according to different requirements, and the background noise is as low as 20-30db
