Manual shielding box

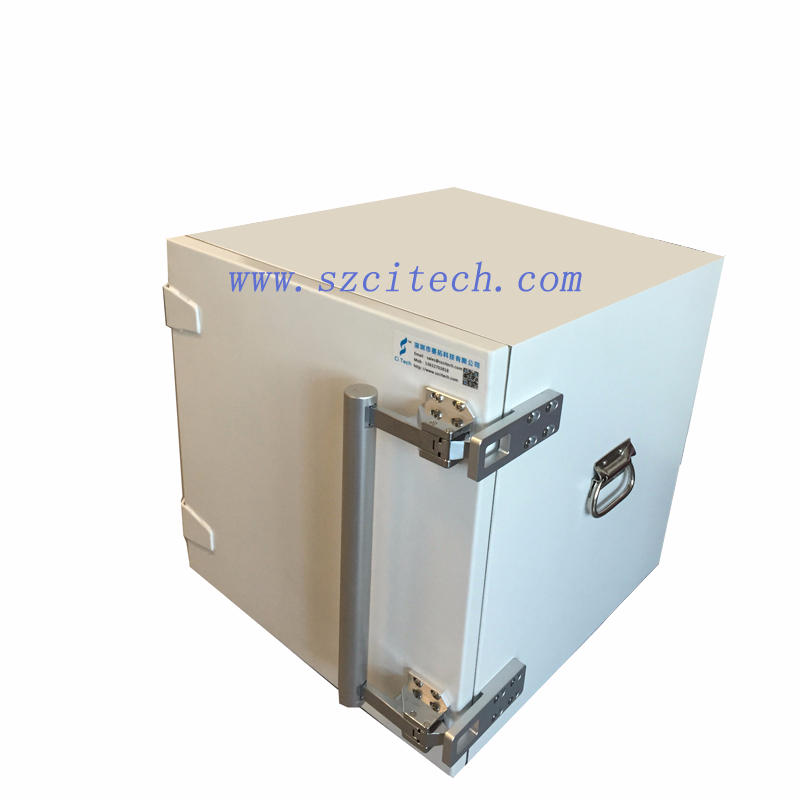

ST-S0035 RF SHIELD BOX/ 5G/WIFI/zigbee/bluetooth

ST-S0035 RF SHIELD BOX/ 5G/WIFI/zigbee/bluetooth/UWB

Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.

order

Application

ST-S0035 RF Shielded Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D , service QC and manufacturing

Features

Reliable high RF shielding up to 12GHz

Manual operation

Easily customizable to meet various test needs

Shock absorbers on lid

Specification

Outer Dimension inner dimension	（D）520 x（W）320 x（H）260mm （D)460x（W）260x（H）220mm
Shielding Isolation	800MHz~8.5GHz>70dB
Shielding Material	Microwave Absorber
Material	metal plate
Weight	approx.11kg
Surface Color	Grey white or coffee( According to the customer request custom color)
I/O Connectors（According to the customer request）	SMA*4
	DC*1
	RJ45*1
	USB*1
