Sub-6GHz & UWB Manual Shield Box
ST-S003B provides shielding effectiveness with a frequency range of 0.1 GHz to 12 GHz. ST-S003B is designed to test Small-sized devices such as Smartphones. The wide range of this box enables testing on traditional technologies like Wifi, Bluetooth, Zigbee, as well as on forward-looking wireless communication technologies like 5G, UWB, and Wi-Fi 6E.

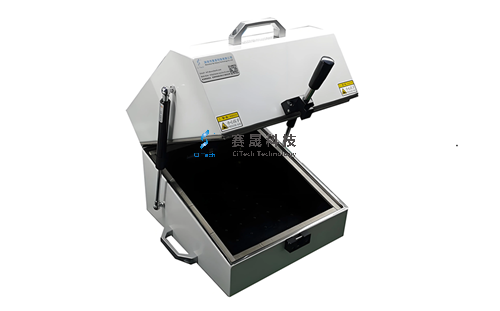

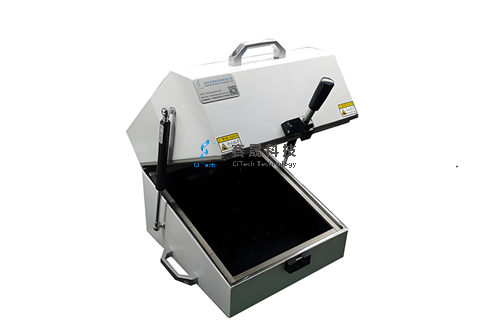

+86 13632703818ST-S003B RF SHIELDING BOX
Application
ST-S003B RF Shielded Box provides RF isolation and signal connections necessary for Mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D , service QC and manufacturing
Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.
Features
u Reliable high RF shielding up to 12GHz
u Manual operation
u Easily customize to meet various test needs
u Shock absorbance on lid
Specification
Inner Dimension | (W)280 (D)300x (H)220 mm |
Outer Dimension | (W)330 x (D)350 x (H)250mm |
Shielding Isolation | 800MHz~8.5GHz>70dB |
Shielding Material | Microwave Absorber |
Materiel | metal plate |
Weight | approx.12kg |
Surface Color | Grey white |
Operation temperature | 0 ~ 50 ℃ |
Storage temperature | -10～60°C |
I/O Connectors | N-SMA*1,SMA-SMA*2,RS232*1,USB*1,RJ45*1,DC*1 |
isolation boxes for RF testing（RF shielded box、RF shield box 、RF box）
