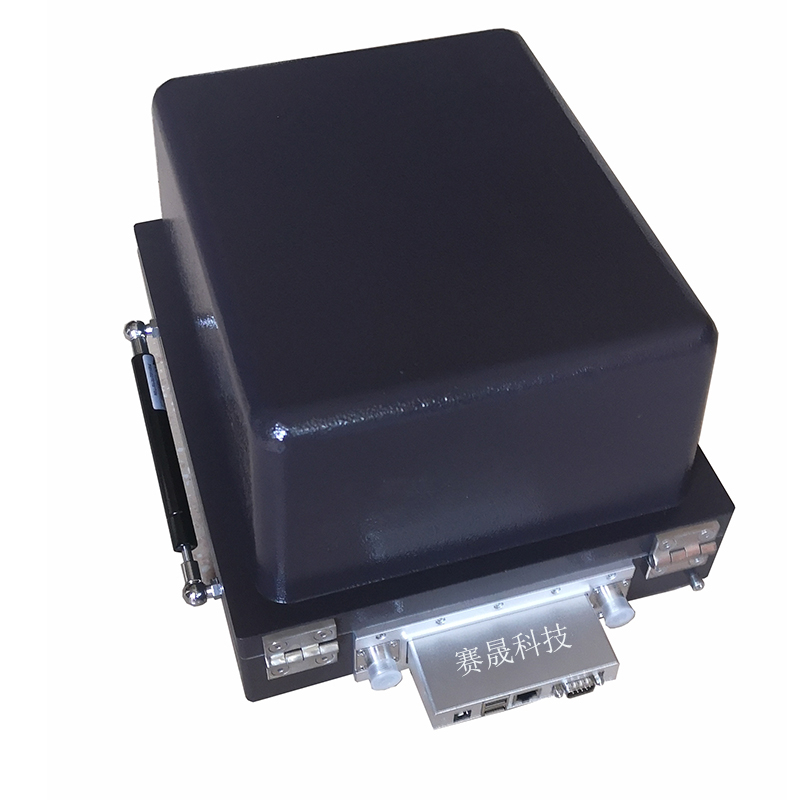

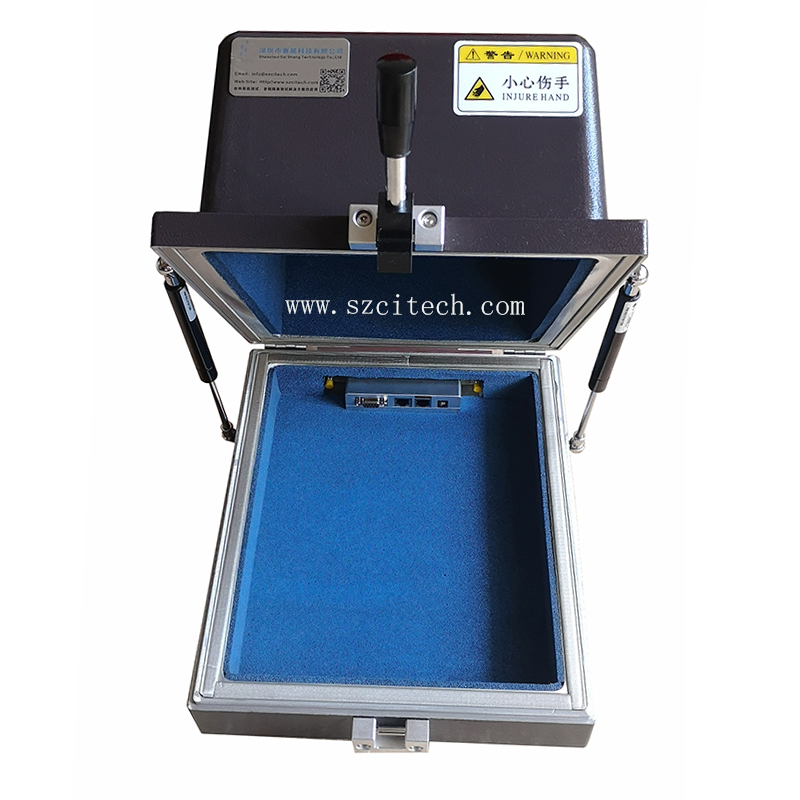

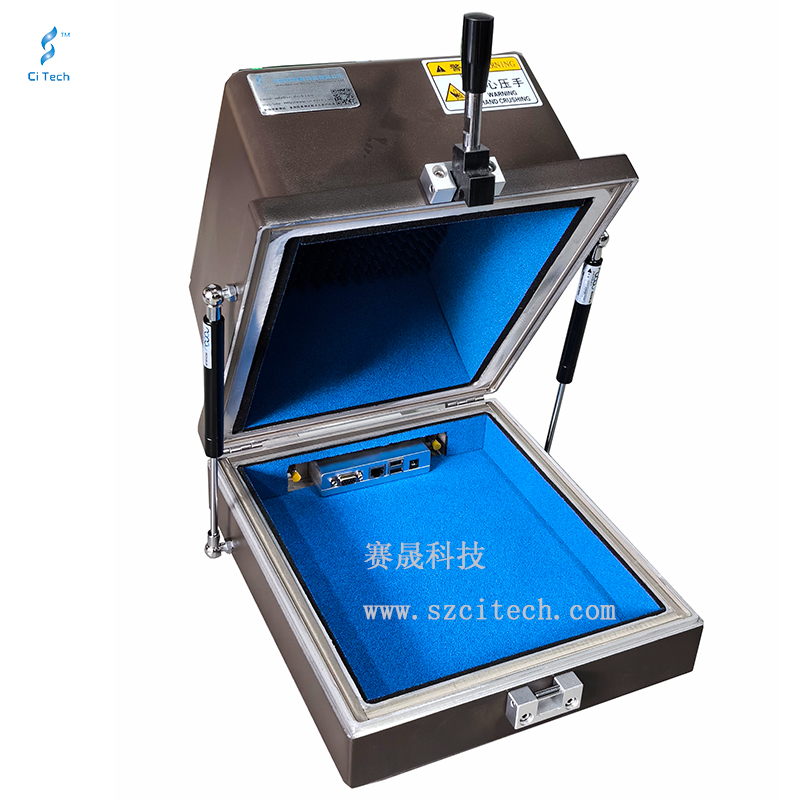

ST-S001B RF shielding box

Sub-6GHz & UWB Manual Shield Box
ST-S001B shares the same design and consistent shielding up to 12 GHz as the ST-S001B but it offers a slightly larger size. The increase in interior working space is suitable for those looking to test bigger devices such as tablets and laptops without sacrificing shielding effectiveness. In addition to shielding traditional 2.5 GHz technologies like WIFI, Zigbee, and Bluetooth, this shield box supports a range of up to 12 GHz to enable testing on forward-looking technologies such as 5G, UWB, and WIFI 6E variants.

order

Application

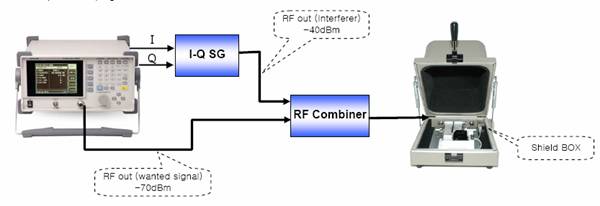

ST-S001B RF Shielded Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D , service QC and manufacturing

Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.

Features

Reliable high RF shielding up to 12GHz

Manual operation

Easily customizable to meet various test needs

Shock absorbers on lid

Specification

Inner Dimension	（L）310 x（W）250 x（H）160mm
Outer Dimension	（L）500 x（W）355 x（H）225mm
Shielding Isolation	800MHz~8.5GHz>70dB
Shielding Material	Microwave Absorber
Material	Aluminum
Weight	approx.12.5kg
Surface Color	coffee
I/O Connectors	N-SMA*2
	RS232*1
	DC*1
	USB2 RJ451
