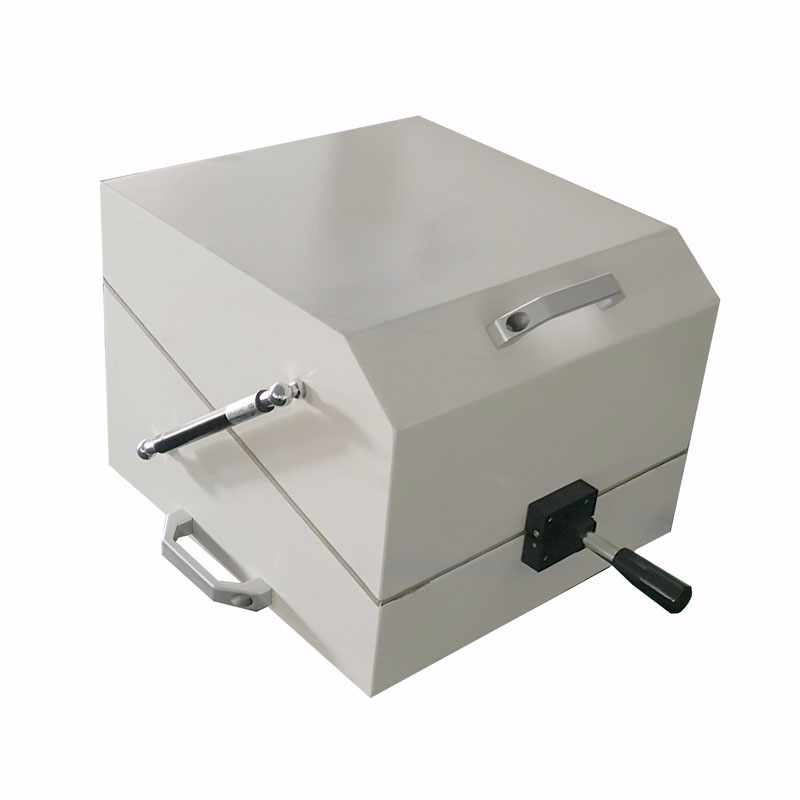

ST-S003 RF Shielding Box|WIFI|bluetooth/UWB

Sub-6GHz & UWB Manual Shield Box
ST-S003 provides shielding effectiveness with a frequency range of 0.8GHz to 12 GHz. ST-S003 is designed to test Small-sized devices such as Smartphones，wifi/bluetooth terminal equipment . The wide range of this box enables testing on traditional technologies like Wifi, Bluetooth, Zigbee, as well as on forward-looking wireless communication technologies like 5G, UWB, and Wi-Fi 6E.

order

Application

ST-S003 RF Shielded Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D , service QC and manufacturing

Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.

Features

Reliable high RF shielding up to 12GHz

Manual operation

Easily customizable to meet various test needs

Shock absorbers on lid

Specification

Inner Dimension	(L)400 (W)400x (H)280 mm

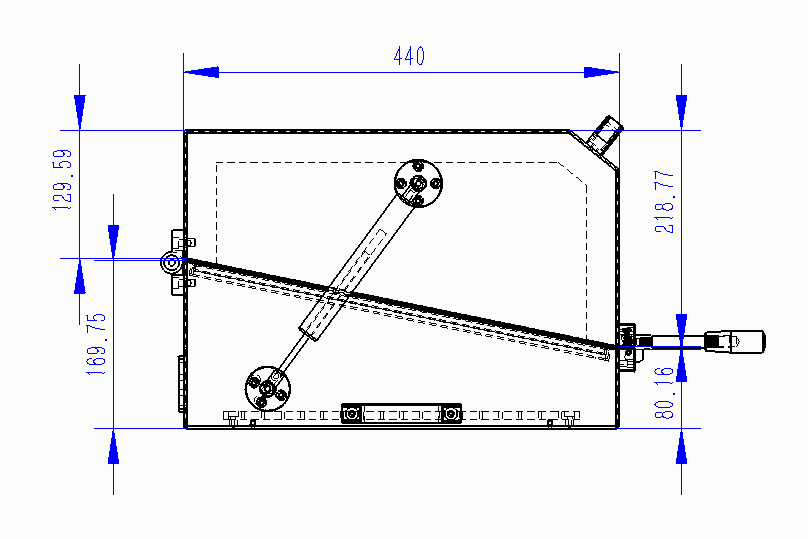

Outer Dimension	(L)490 x (W)440 x (H)300mm
Shielding Isolation	800MHz~8.5GHz>70dB
Shielding Material	Microwave Absorber
Materiel	metal plate
Weight	approx.18kg
Surface Color	Grey white ( According to the customer request custom color)
Operation temperature	0 ~ 50 ℃
Storage temperature	-10～60°C
I/O Connectors	SMA-SMA6,RS2321,USB2,RJ451,DC*1
