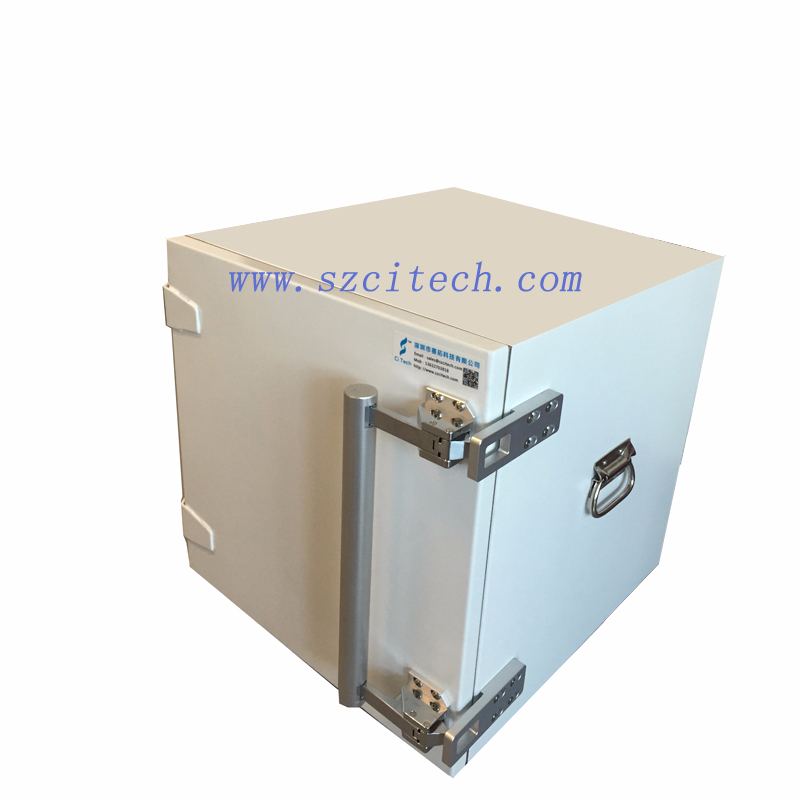

ST-S006 RF Shielding Box

Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.

order

Application

ST-S006 RF Shielded Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing RF devices on the test benches of R&D , service QC and manufacturing

Features

Reliable high RF shielding up to 9GHz

Manual operation

Easily customizable to meet various test needs

Shock absorbers on lid

Specification

Inner Dimension	400(L)×400(W)×400(H)mm
Outer Dimension	480(L) x 480(W) x 480(H) mm
Shielding Isolation	800Mhz~8.5GHz >70dB
Shielding Material	Microwave Absorber
Material	metal plate
Weight	approx.25kg
Storage temperature	-10～60°C
Operating temperature	0～50°C
Surface Color	Grey white ( According to the customer request custom color)
I/O Connectors	SMA-SMA*4
	RJ45*1
	DC*1
	USB*2
	DB9*1
