Mobile Spherical Near-Field Multi-Probe Testing System

CT-24M Spherical Near-Field Multi-Probe Testing System is a mobile OTA (Over-the-Air) and antenna testing anechoic chamber equipped with 24 probes. Designed and built in accordance with the sampling requirements specified in CTIA (Cellular Telecommunications and Internet Association) standards, it supports a frequency range of 600MHz-8GHz (upgradeable to 12GHz). Featuring a compact footprint and flexible mobility, the system can be quickly set up and put into operation. It is equipped with the latest self-developed algorithms and software by Sai sheng Technology, supporting comprehensive antenna parameter testing as well as OTA testing for all common mobile communication and wireless broadband standards, such as 2G, 3G, 4G, 5G, WIFI, and BT. Additionally, it supports non-signaling active testing. With stable and fast testing performance, the system is an optimal wireless testing solution for antenna and complete device development in fields like mobile communications, the Internet of Things (IoT), and laptops.

Main Parameters：

OTA TEST SYSTEM

Mobile Spherical Near-Field Multi-Probe Testing System`s Main Specifications:

1. Broad frequency band coverage: 0.6GHz ~ 8GHz (supports rapid upgrade to 12GHz), compatible with 2G, 3G, 4G, 5G, WIFI, BT, GNSS, etc.

2. Omnidirectional sampling: 360° full coverage, with the minimum sampling resolution of the turntable up to 0.5°.

3. Full-function testing: supports comprehensive testing of gain, efficiency, and radiation pattern parameters for linearly polarized, circularly polarized,

     and elliptically polarized antennas.

4. Large sampling distance: the inner diameter of the probe array is 1.2m, and the maximum sampling distance is 0.6m.

OTA TEST SYSTEM Main Functions(Mobile Spherical Near-Field Multi-Probe Testing System):

Passive Testing(Mobile Spherical Near-Field Multi-Probe Testing System)

• Frequency support: 600MHz - 8GHz

• Polarization support: Linear polarization, circular polarization, elliptical polarization

• Testing content: Gain, efficiency, radiation pattern, left/right-hand circular polarization gain, beamwidth, non-circularity, axial ratio, etc.

Active Testing(Mobile Spherical Near-Field Multi-Probe Testing System)

• Frequency support: 600MHz - 8GHz

• Testing indicators: Total Radiated Power (TRP), Total Isotropic Sensitivity (TIS), Effective Isotropic Radiated Power (EIRP), Effective Isotropic Sensitivity (EIS) of the complete device

• Testing standards: 2G/3G/4G/5G, Wi-Fi b/g/n/a/ac/ax, BT (Bluetooth), NB-IoT, Cat-M, GNSS (Global Navigation Satellite System)

OTA TEST SYSTEM Product Specifications(Mobile Spherical Near-Field Multi-Probe Testing System):

• Frequency Range: 600MHz ~ 8GHz

• DUT Size: ≤ 0.7m

• DUT Weight: ≤ 15Kg

• Typical Dynamic Range: 75dB

• Passive Testing Speed: 1 minute per 10 frequency points

• Field Transformation Speed: 2 seconds per frequency point

• Gain Stability: ±0.25dB

• Typical TIS Speed: 4 minutes per channel (CH)

• Typical TRP Speed: 40 seconds per channel (CH)

• TRP Stability: ±0.3dB

• TIS Stability: ±0.5dB

OTA TEST SYSTEM Main Specifications(Mobile Spherical Near-Field Multi-Probe Testing System):

1. Typical Dimensions (LWH): 1784mm * 1100mm * 1885mm

2. Door Opening Dimensions: 60mm * 60mm (manual operation)

3.Number of Probes: 24

4. Rated Power (excluding instruments and computers): 300W

5. Rated Voltage: 110AC ~ 220AC

6. Total Mass: 400kg

OTA TEST SYSTEM

Mobile Spherical Near-Field Multi-Probe Testing System

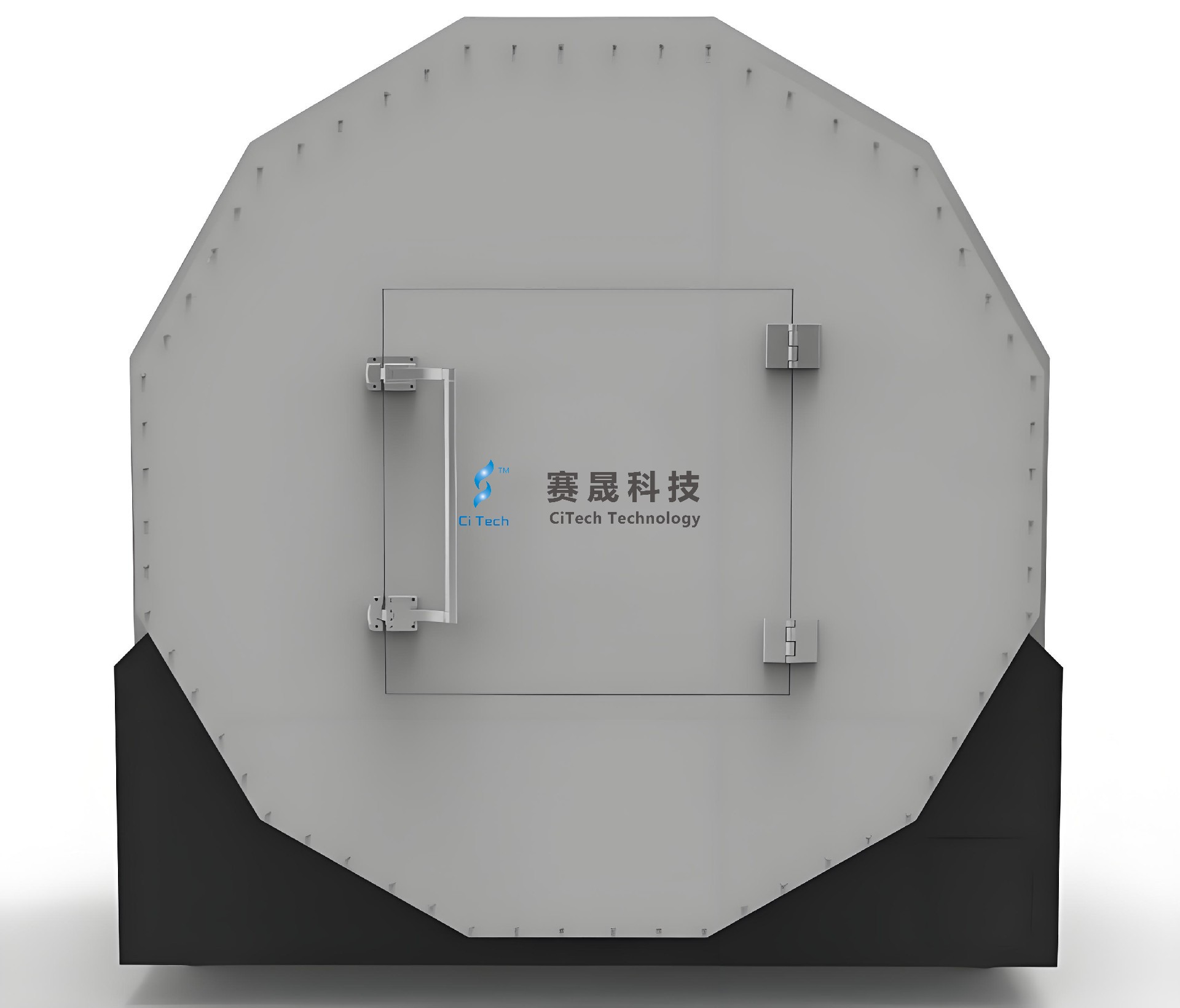

CT-24M Mobile Spherical Near-Field Multi-Probe Testing System is a mobile OTA (Over-the-Air) and antenna testing anechoic chamber equipped with 24 probes
