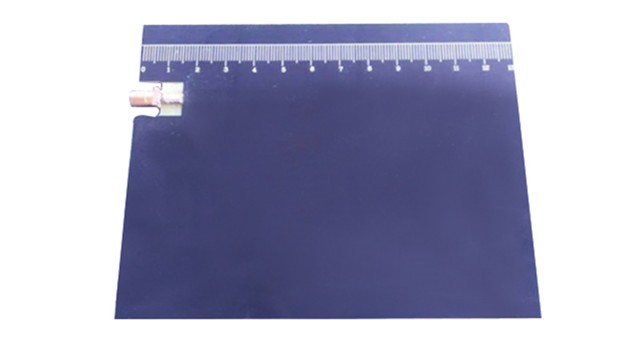

维瓦第天线/vivaldi antenna

vivaldi antenna ST-AC006

Vivaldi天线作为一种行波天线，具有端射辐射、工作频带宽、剖面低等特点

A Vivaldi antenna is a co-planar broadband-antenna, which is made from a dielectric plate metalized on both sides.

覆盖手机所用频段：

800mhz  驻波 2.20

900mhz  驻波 1.48

1800mhz  驻波 1.15

2100mhz 驻波 1.5

2400mhz 驻波 1.38

5200mhz 驻波1.50

5800mhz  驻波1.29

...

...

...
