Automatic shielding box

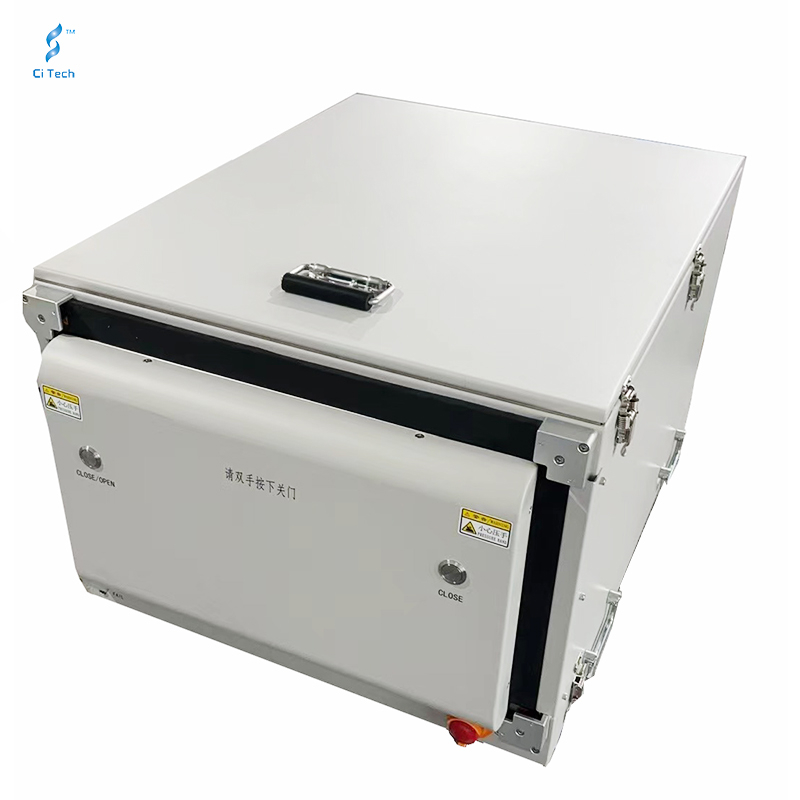

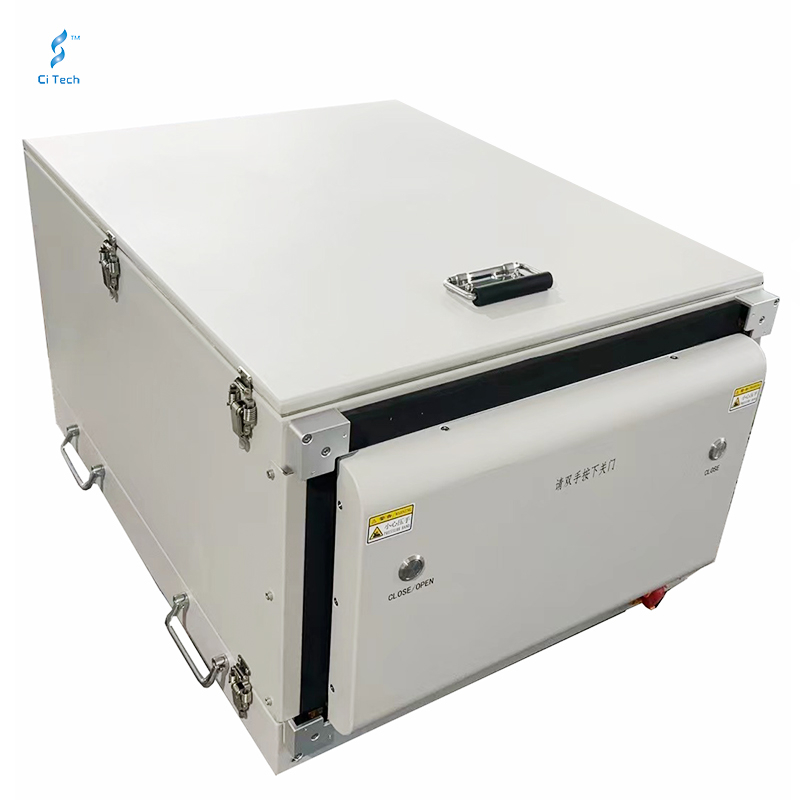

ST-SA5064 PCBA test RF SHIELD BOX

ST-SA5064 providing shielding capabilities up to 12 GHz. The size of the ST-SA5064 is a popular choice for performing RF testing on small wireless and mobile devices. In addition to shielding traditional 2.5 GHz technologies like WIFI, Zigbee, and Bluetooth, this shield box supports a range of up to 12 GHz to enable testing on forward-looking technologies such as 5G, UWB, and WIFI 6E variants. The box can be operated remotely via remote control, while additional features like the dual pressure control lid and sensor ensure enhanced user safety.

order

Features

u  Reliable high RF shielding up to 12GHz

u  Pneumatic control/Automatic

u  Easily customize to meet various test needs

u  Shock absorbance on lid

u  Easy to maintain design, with safety protection

u  SMT motherboard test power value is stable,

ensure reliable repeat test, good consistency



Specification

Outer Dimension

(W)550*(W)680*(H)415 MM

Shielding Isolation

800MHz~6GHz>70dB

Shielding Material

Microwave Absorber

Material

  metal plate

Surface Color

white  ( According to the customer request custom color)

I/O Connectors

SMA*12,RS232*1,   DB25*1,USB*2,RJ45*2,DC*1According to the customer   request
