Pneumatic sound box

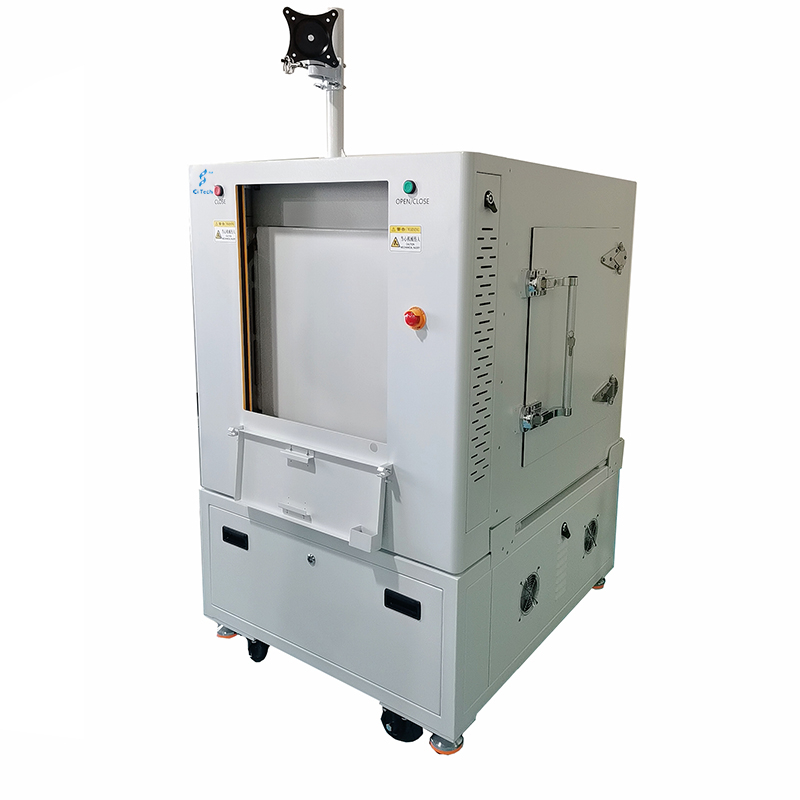

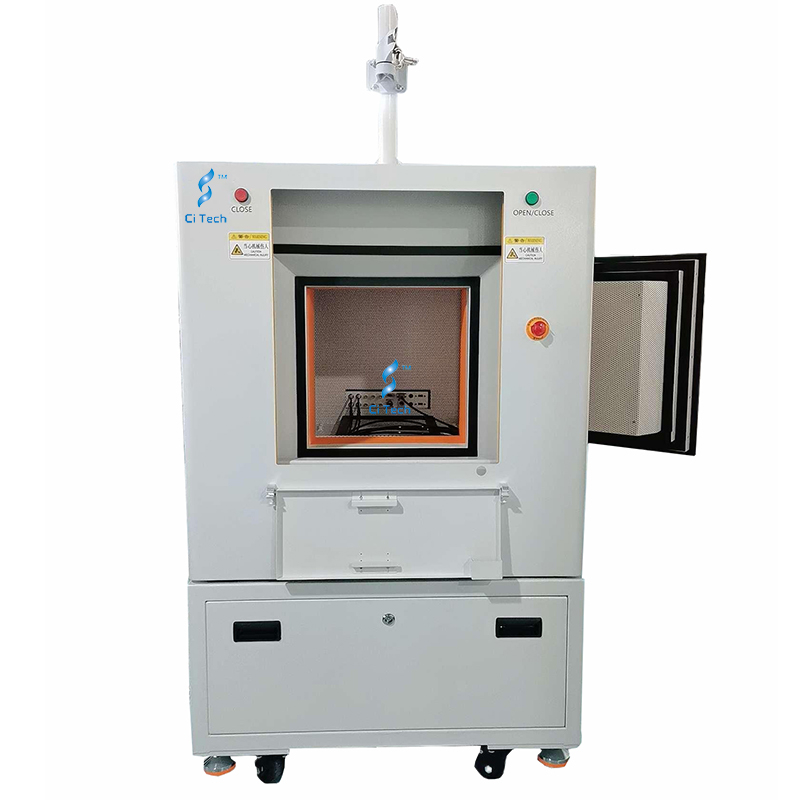

ST-SG1011soundproofing box/ acoustic chamber/sound box

● Manual/automatic operation;

● Works for both manual operation line and automatic line;

● Equipped with independent operating door and maintenance door;

● Has the detection function of detection maintenance door switch state, only after the maintenance door is closed, can be tested, with the role of fool-proofing;

● Equipped with a separate Base, can be easy to move.

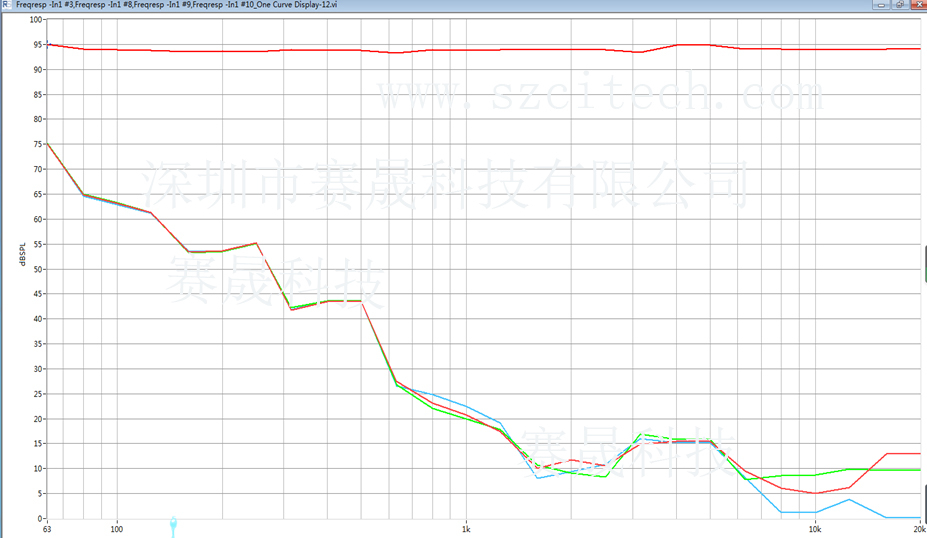

Soundproof solution

 ≥20 dB, 80Hz to 100Hz;

 ≥25dB,100 to 200Hz;

 ≥35db,200 to 400Hz;

 ≥45db,400 to 1500Hz;

 ≥50dB, >1500 Hz


order

Introduction:

szcitech can specially provide a steady testing environment with noise floor low as 30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound-isolated box with special size and fixture, and provide integrated testing system solutions.


Application

The main function and scope of application

Providing a sound insulation testing environment for products



Operation Mode

Pneumatic

inner dimension

(L)500*(W)500*(H)500 mm

Material

metal   plate

Surface Color

Grey   white

Soundproof solution

 ≥20 dB, 80Hz to 100Hz;

  ≥25dB,100 to 200Hz;

 ≥35db,200 to 400Hz;

 ≥45db,400 to 1500Hz;

 ≥50dB, >1500 Hz

I/O(connector)

weight

BNC*6,USB3.0*2,DC*2,XLR*2

approx 465kg


RF shielding box/RF SHIELD BOX/sound box/acoustic chamber、solution box、soundproof box、soundproofing box

Acoustic Test Solution
