tescom antenna coupler

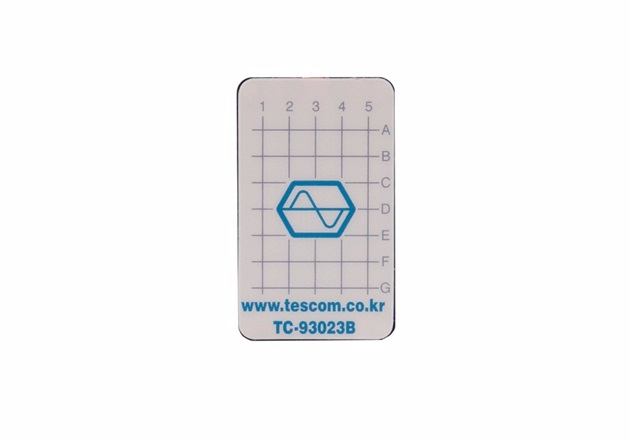

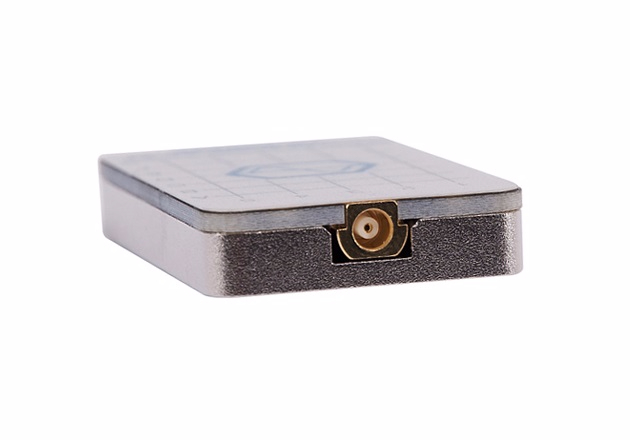

TC-93023B, Flat Type Antenna Coupler

TC-93023B, Flat Type Antenna Coupler, performs RF Coupling for Near Field Electromagnetic Field of DUT as installed in the SAISHENG’s RF Shield Box. It is stable and has steady RF Coupling characteristics within range of 700 ~ 3000 MHz. It is subminiature with size of 50(W) x 30(D) that can be installed onto various types of fixtures.

order

Frequency Range: 700 ~ 3000 MHz

RF Connector: MCX(f)

Dimension: 50 (W) x 30 (D) x 8.1 (H) mm

Weight: 40 g

Terminal: 50 Ohm

VSWR: better than 1 : 1.7
