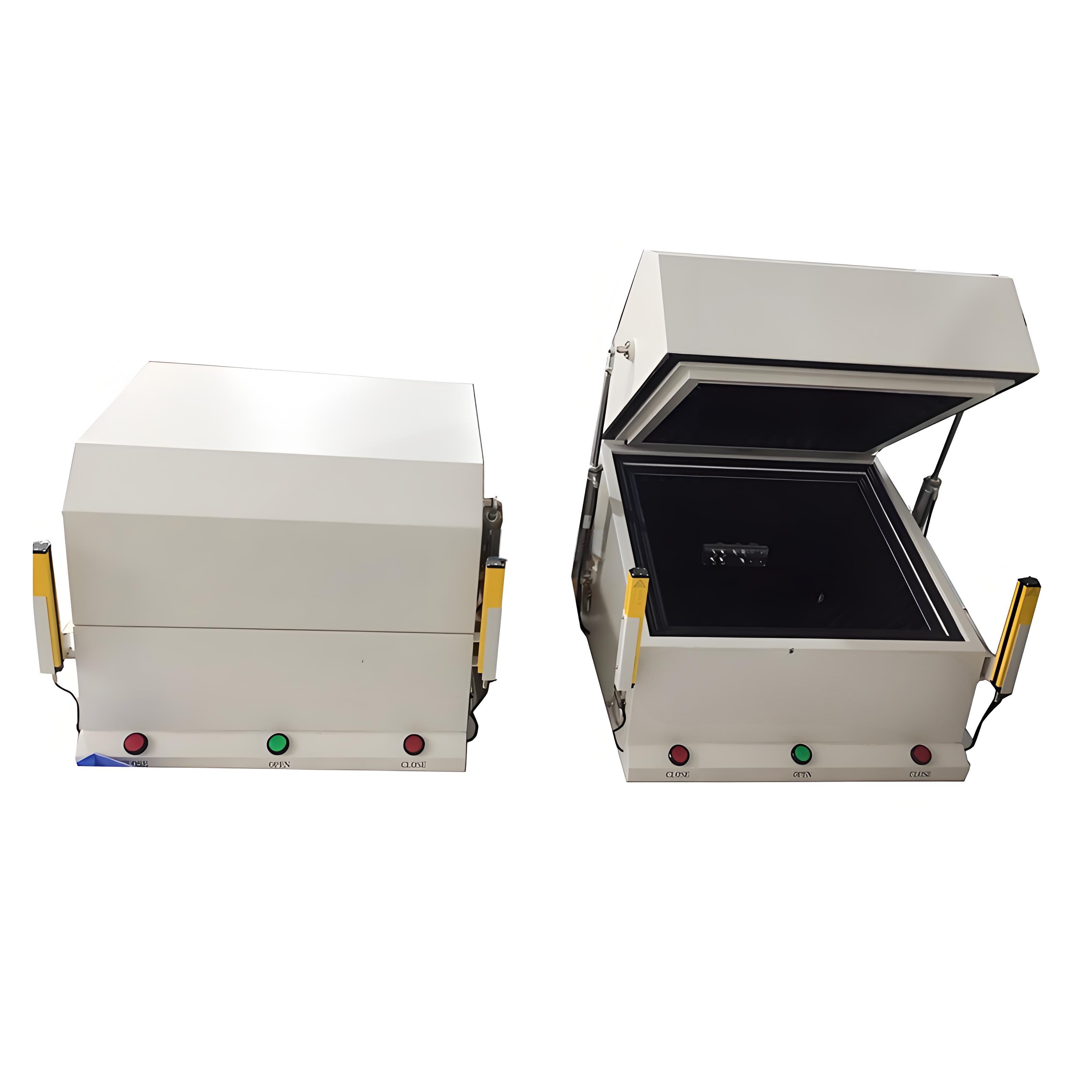

ST-SG5060 soundproofing box/ acoustic chamber
Application
The main function and scope of application
Providing a sound insulation testing environment for products
Operation Mode | Pneumatic |
Inner dimension | (L)500*(W)600*(H)400mm |
Outer dimension | (L)820*(W)970*(H)705mm |
Material | metal plate |
Surface Color | Grey white |
Soundproof solution | 100-300hz>25dB,300-500hz>35dB,500-20khz>40dB |
I/O(connector) | AC220*1 ,BNC*2, USB2.0*4 |
Weight | approx.110kg |
RF shield box、shielded boxs、antenna coupler、acoustic chamber
RF shield box、shielded boxs、antenna coupler、acoustic chamber
Telephone
+86 18038170771
szcitech can specially provide a steady testing environment with noise floor low as 30dBA for performance testing of acoustic products, such as speaker, receiver and mic. Sound isolation can reach more than 40dB(300Hz~20kHz), Also, we can customize sound-isolated box with special size and fixture, and provide integrated testing system solutions.
