Antenna Coupler

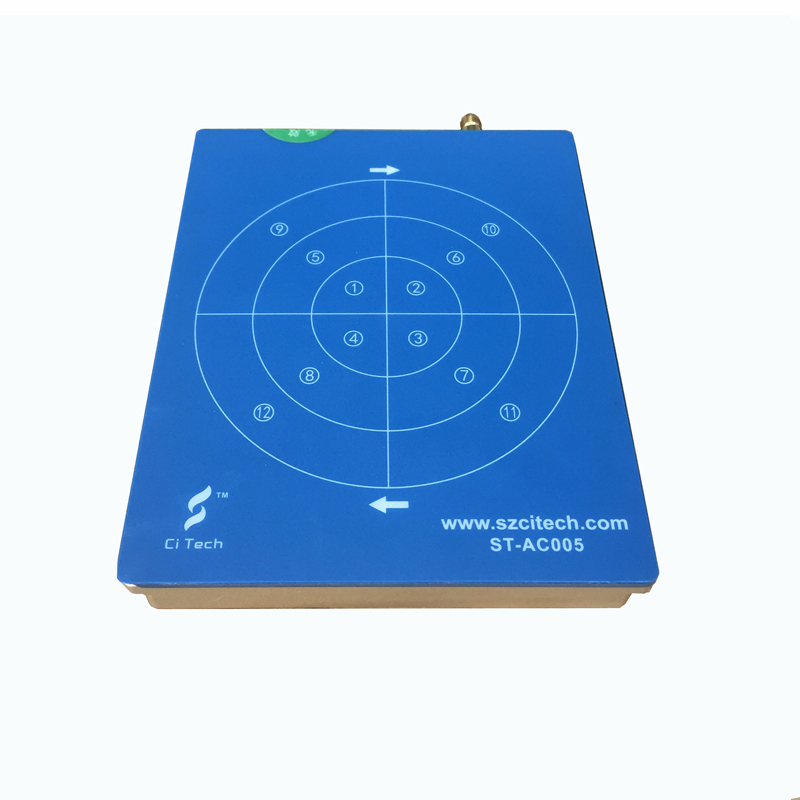

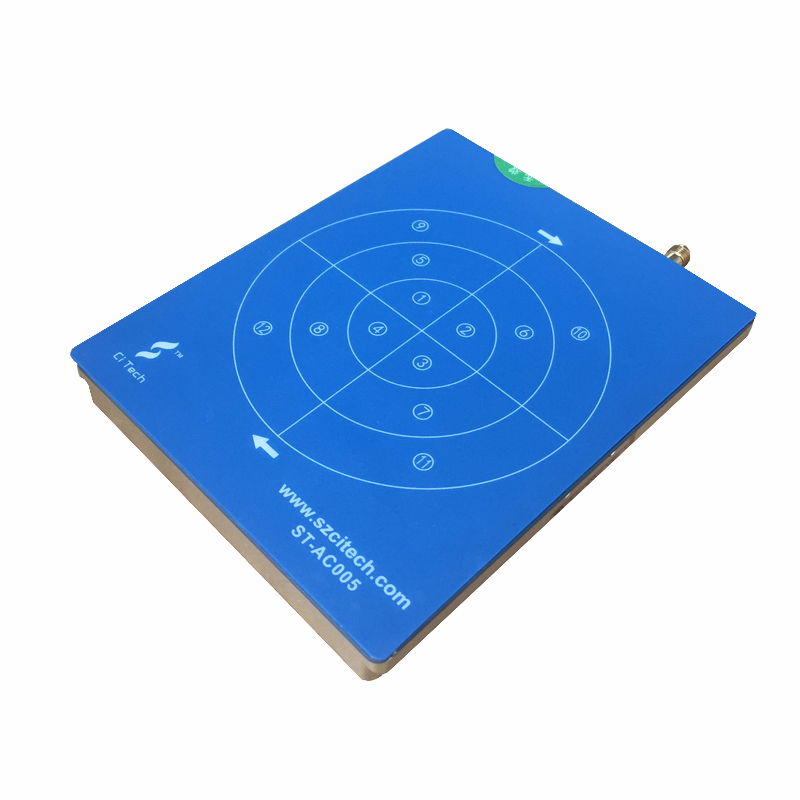

ST-AC005 8G Antenna Coupler



1. Realize the radiation mode OTA measurement

2. Can reproduce the consistency of the measurement

3. Range of application:

    GSM, PCS, DCS,CDMA, WCDMA, CDMA2000, TD-SCDMA,5G, Wi-Fi, Bluetooth, GPS, DAB, Remote control car, RFID,TPRS,ZigBee, UWB, WiMax, LTE and a variety of small wireless communication equipment of the research, production, quality inspection, test and certification department test use


order


Application


Fundamental principle and function :


Antenna coupler is born with the development of radio terminals in recent years, because the signal is too strong for ordinary antenna , it will have a reflective resonance, affect the test accuracy.


Antenna coupler can be smooth in receiving and transmitting signals, can achieve product batch testing and product development needs. Capacitors and inductors on the circuit board converts the energy of electromagnetic waves, and spread in a fixed direction instead of external electromagnetic fields can also be converted to electrical energy.


 As the best means of receiving signals on the external antenna , and energy.


 Features

1. Realize the radiation mode OTA measurement

2. Can reproduce the consistency of the measurement

3. Range of applicationGSM, PCS, DCS, CDMA, WCDMA, CDMA2000, TD-SCDMA, Wi-Fi, Bluetooth, GPS, DAB, Remote control car, RFIDTPRSZigBee, UWB, WiMax, LTE and a variety of small wireless communication equipment of the research, production, quality inspection, test and certification department test use



Outer Dimension

130(W) × 106(D) × 17(H)mm

Material

Aluminum

Weight)

about 350g

Frequency Range

800 ~ 8500MHz

Insertion Loss

7 ~ 18dB

VSWR

about< 1 : 2.2(type1.7)

RF Connector

SMA(f)

polarization mode

RHCP

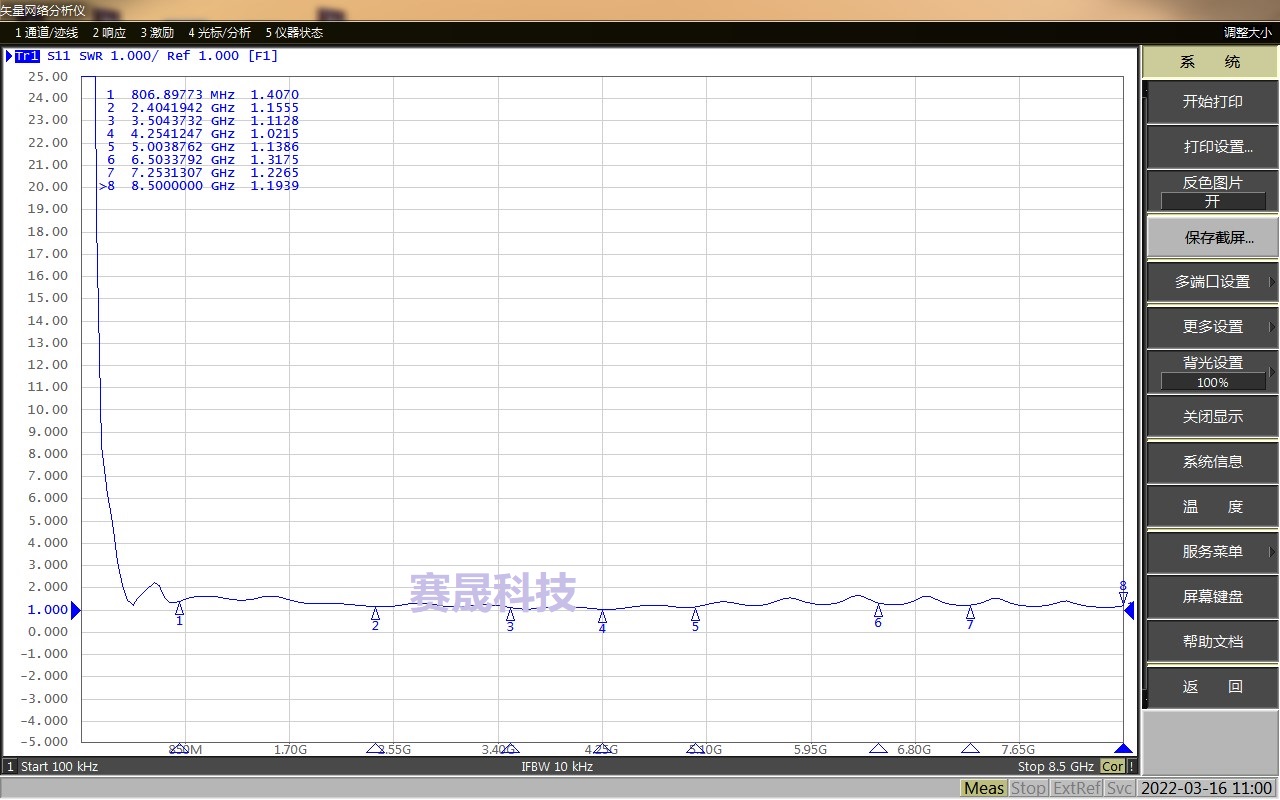

ST-AC003 驻波比.jpg
