ST-A1332 RF chamber

Shielded chambers isolate internal and external electromagnetic waves via metal shielding enclosures. They are mainly categorized into four types: EMC testing,

RF communication testing, precision instrument protection, and confidential security shielding. They perfectly match the application scenarios of your testing acoustic shielding

equipment industry.

RF Performance Testing Applications

1. Calibration of wireless product specifications: Testing for Wi-Fi, Bluetooth, 5G, NFC, RF connectors, antenna transmit/receive power and receiving sensitivity;

2. Isolation of external signal interference: Block signals from outdoor base stations, radio stations and industrial inverters to avoid distortion of test data and guarantee measurement accuracy;

3. Passive component testing: Insertion loss and VSWR testing of RF cables, adapters, shielding boxes and couplers.

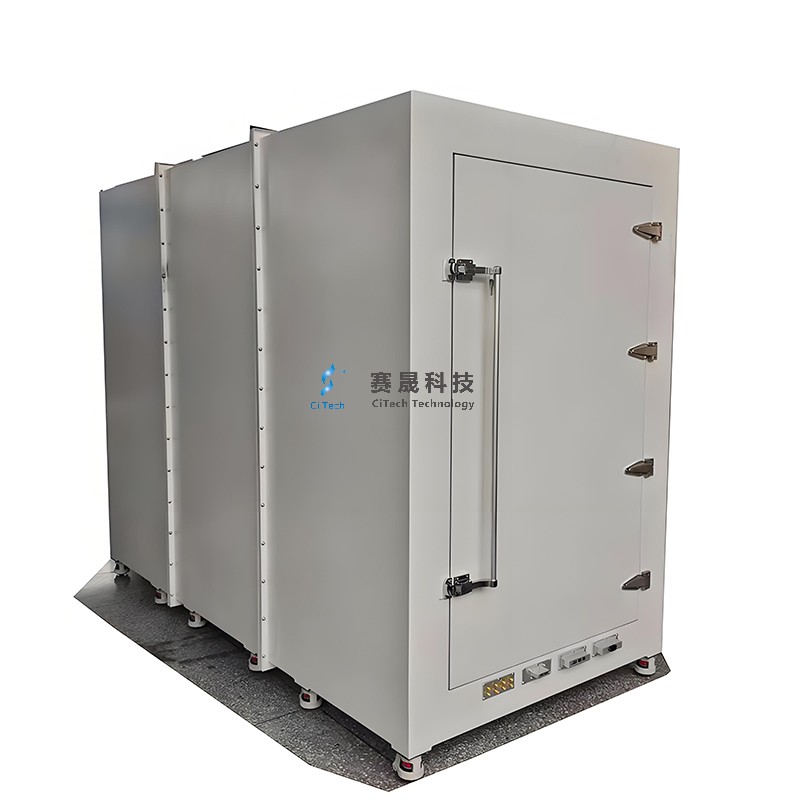

The ST-A1332 Mini Anechoic Shielded Chamber delivers premium testing environments for RF tests in R&D departments and laboratories.

Core Specifications

① Operation Mode: Manual side opening design, equipped with two shielding doors at front and rear sides

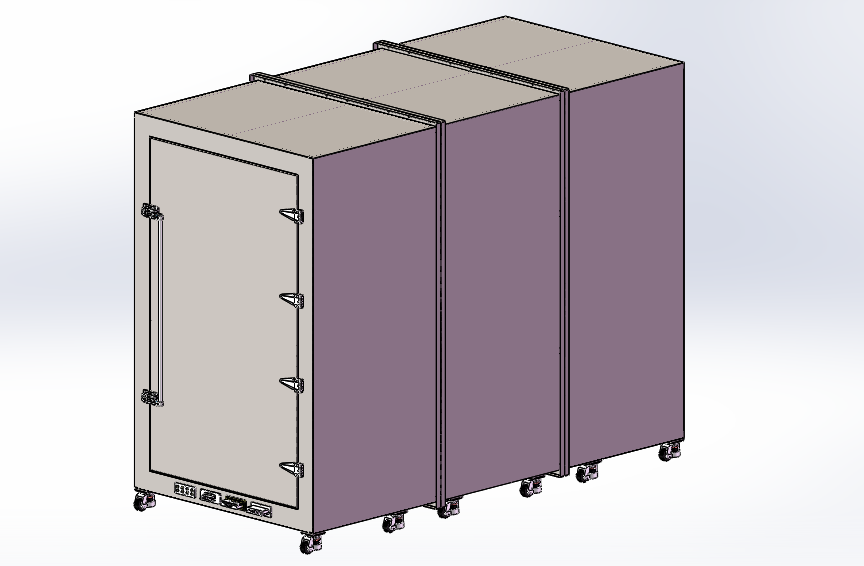

② Outer Dimension: 1300(W) × 2700(D) × 2000(H) mm

③ Frequency Range: DC ~ 18 GHzShielding Effectiveness: >70 dB within 800 MHz ~ 18 GHz

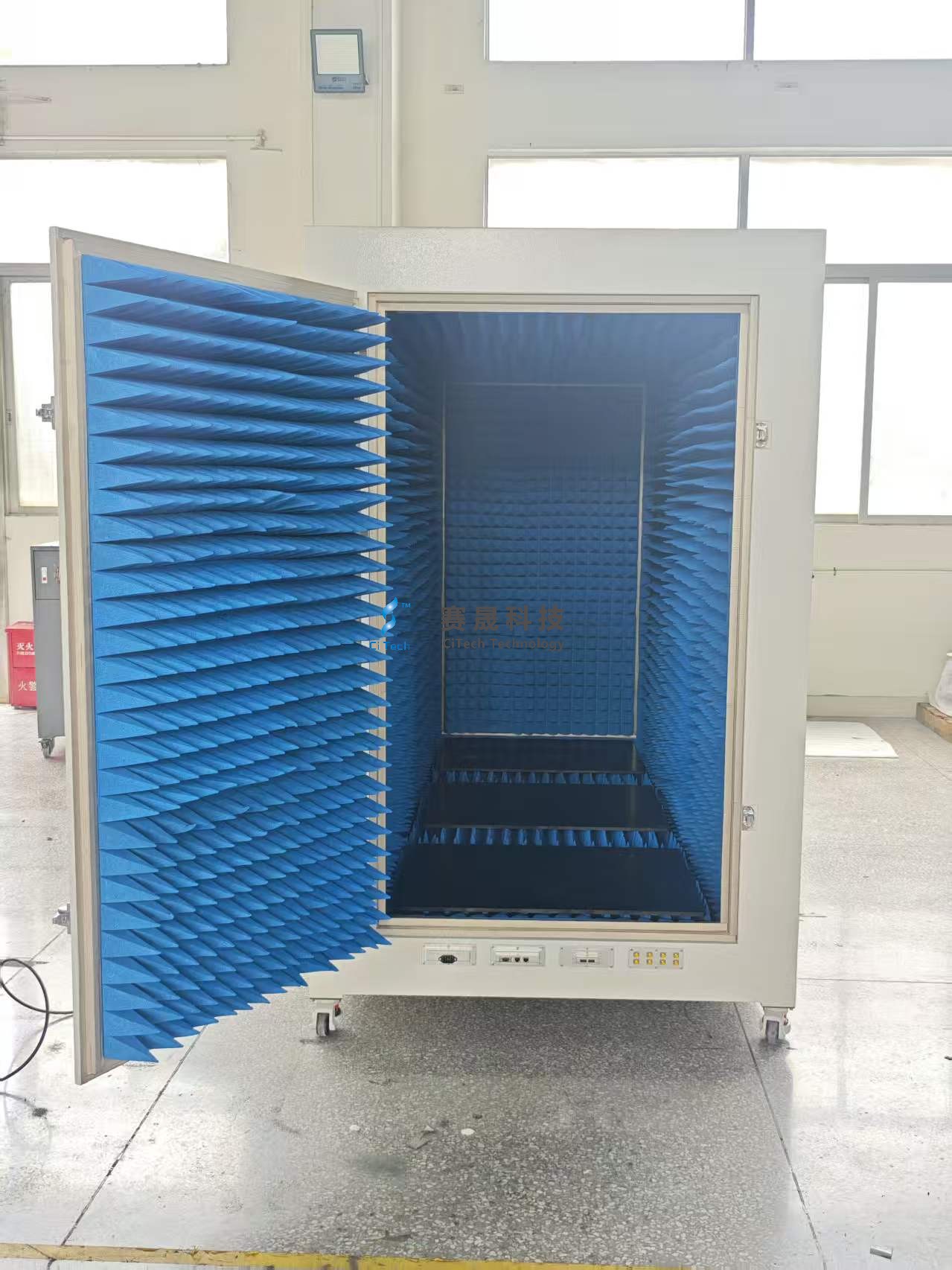

Absorber Material: 150 mm pyramidal microwave absorbing foam

④ Interface Configuration (one set each for front and rear doors):1 × AC220 power port, 1 × DB9 port, 2 × USB3.0 ports, 2 × RJ45 ports, 8 × SMA ports

Technical Compliance Standard

Test standard basis: GB/T 12190-2006 Measurement Method for Shielding Effectiveness of Electromagnetic Shielded Enclosures

Calculation of Shielding Effectiveness

Shielding effectiveness is abbreviated as SE, with the unit decibel (dB).It can be expressed by power ratio:

Where:P₁ = Incident power, the power measured at the observation point without shielding;P₂ = Transmitted power penetrating the shield, the power measured at the identical observation point after installing the shield.

Professional Term Glossary

1. 屏蔽室 - Shielded Chamber

2. 屏蔽暗室 / 吸波暗室 - Anechoic Shielded Chamber

3. 屏蔽效能 SE - Shielding Effectiveness

4. 插损 - Insertion Loss

5. 驻波比 VSWR - Voltage Standing Wave Ratio

6. 吸波棉 - Microwave Absorbing Foam / Pyramidal Absorber

7. 隔离度 - Isolation

8. 无源器件 - Passive Component

9. 电磁兼容 EMC - Electromagnetic Compatibility

10. 射频 RF - Radio Frequency
