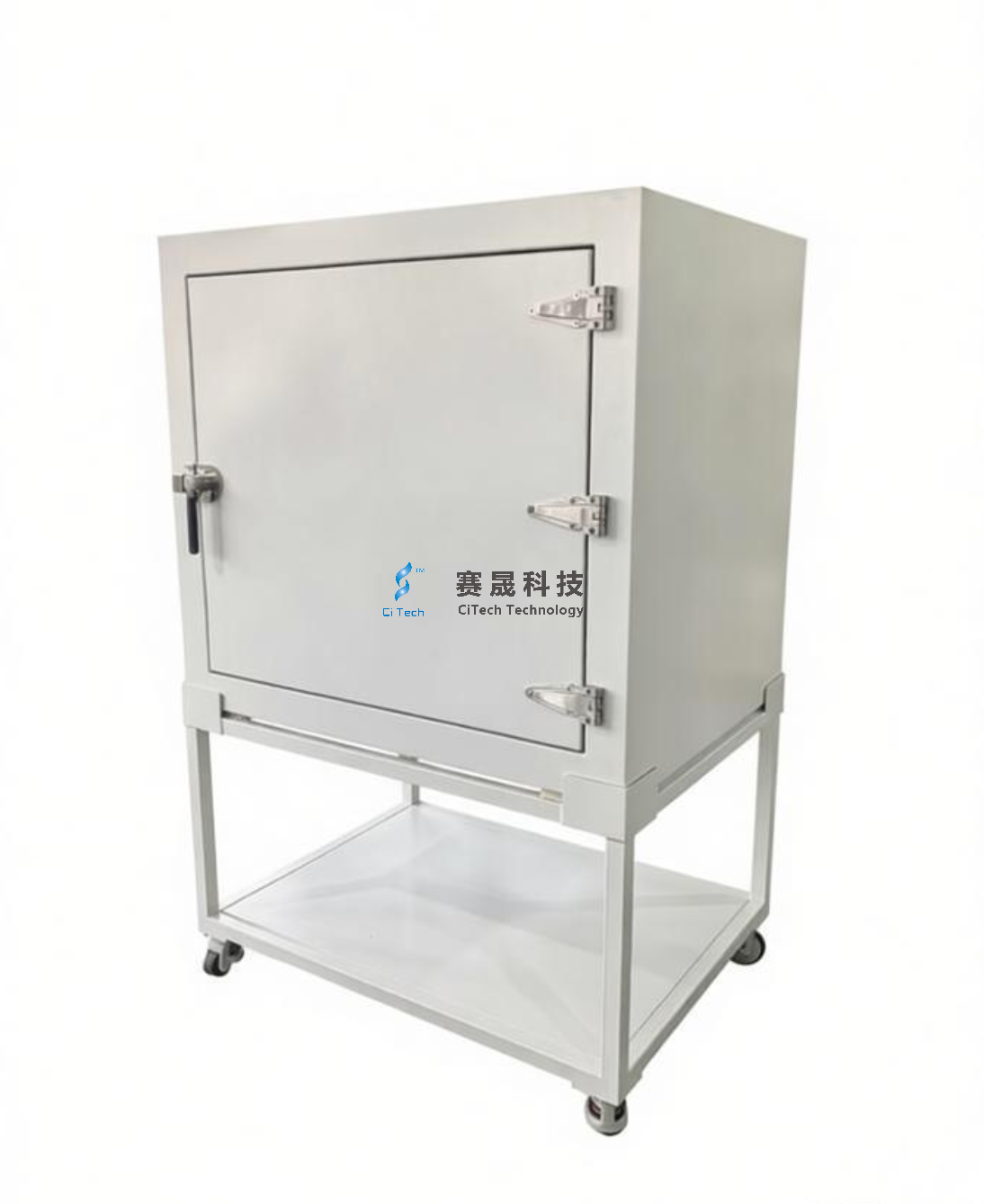

ST-SG8570 30dBA acoustic chamber

Manual Soundproof Enclosure

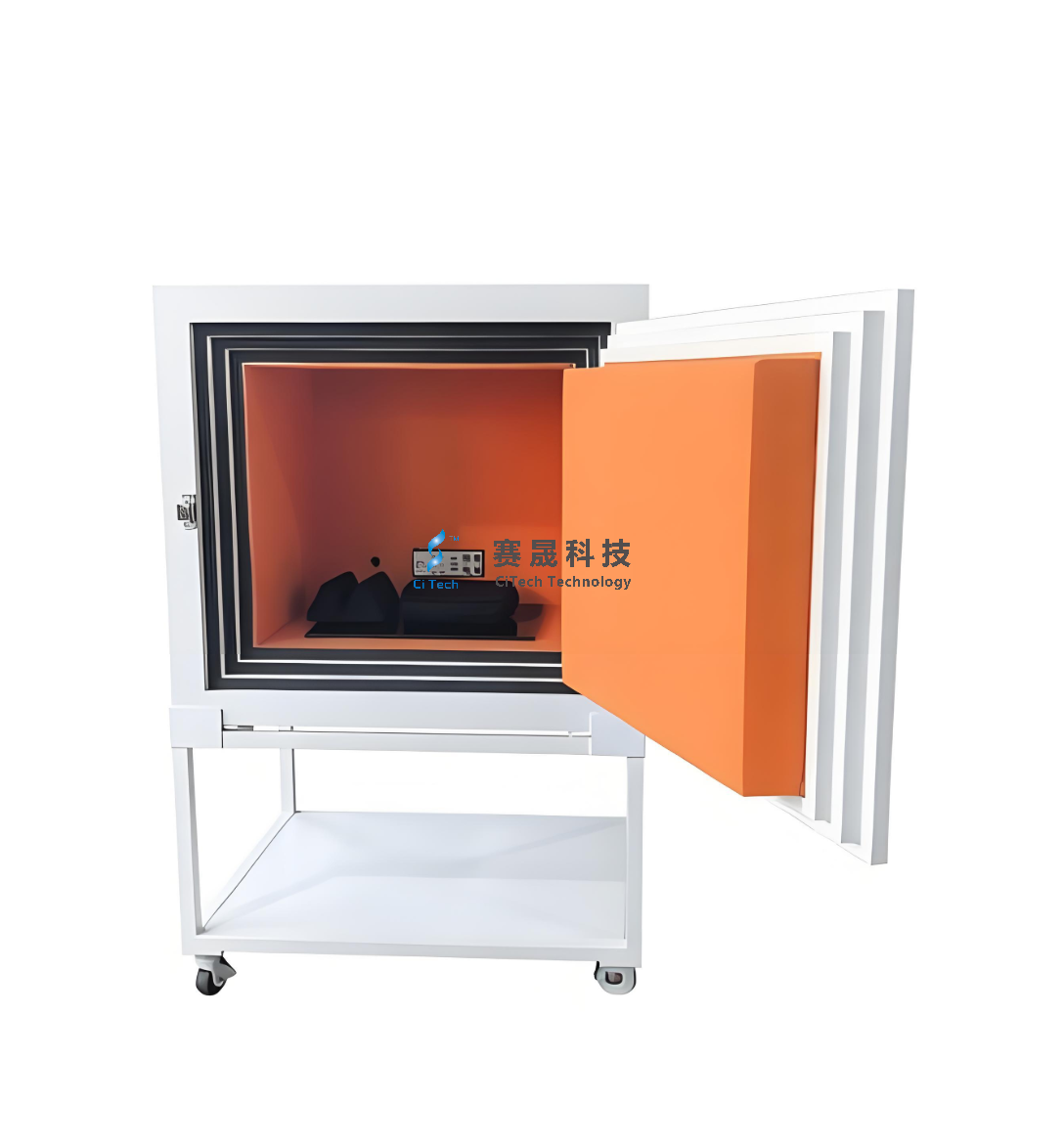

This manual soundproof enclosure is designed for accurate acoustic testing and noise control. As a reliable soundproof enclosure, it effectively isolates external noise and ensures a quiet testing environment. The soundproof enclosure features a sturdy structure and reliable sealing, making it ideal for small audio products.

This easy-to-operate soundproof enclosure supports manual opening and closing for convenient use. Each soundproof enclosure is built with sound-absorbing materials to improve test accuracy. The compact soundproof enclosure is widely used in production lines and laboratories.

This durable soundproof enclosure ensures stable performance in long-term use. As a professional soundproof enclosure, it helps reduce noise interference effectively. This cost-effective soundproof enclosure is an essential tool for acoustic detection.

manual Rack style acoustic chamber

manual noise test soundproof box/acoustic chamber

anechoic test box/acoustic test chamber/acoustic box

Application：

The main function and scope of application

The anechoic test box/acoustic test chamber providing a sound insulation testing environment for products

 Operation Mode

Manual operation（Rack style）

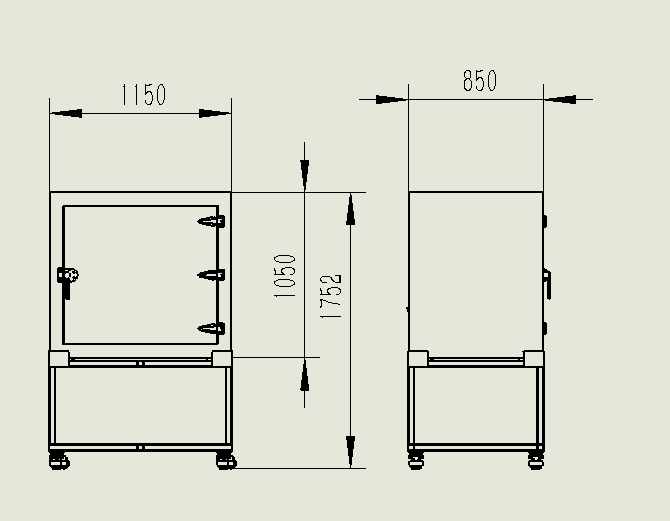

Inner dimension： (W)800*(D)500*(H)700mm

weigh：about405kg

Material：other

metal   plate  ：with Mobile Underframe

Surface Color：white

Soundproof solution

A weighted sound pressurelevel:    outside 80db，  background noise < 30db

Measured results:outside white noise 80.5dB

inner nosie:28.7dB

isolation：51.8dB

background noise：26.6dB

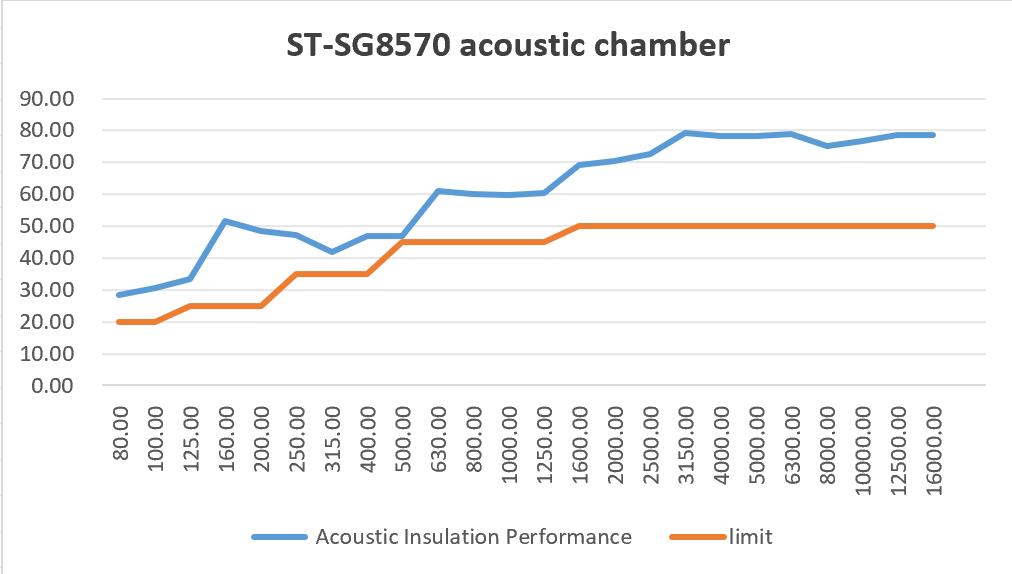

Sweep Mode：

≥20 dB, 80Hz to 100Hz；

 ≥25dB，100 to 200Hz；

≥35db，200 to 400Hz；

≥45db，400 to 1500Hz；

≥50dB, >1500 Hz

I/O(connector)：BNC*6,USB*3,XLR connector*4，AC*1 （According to the   customer request ）

ST-SG8570 soundproof box

Saisheng: A professional manufacturer of shielded enclosures （RF shielded box）and soundproof boxes（acoustic chamber）, providing customized RF

shielded enclosures and soundproof boxes according to specific requirements.
