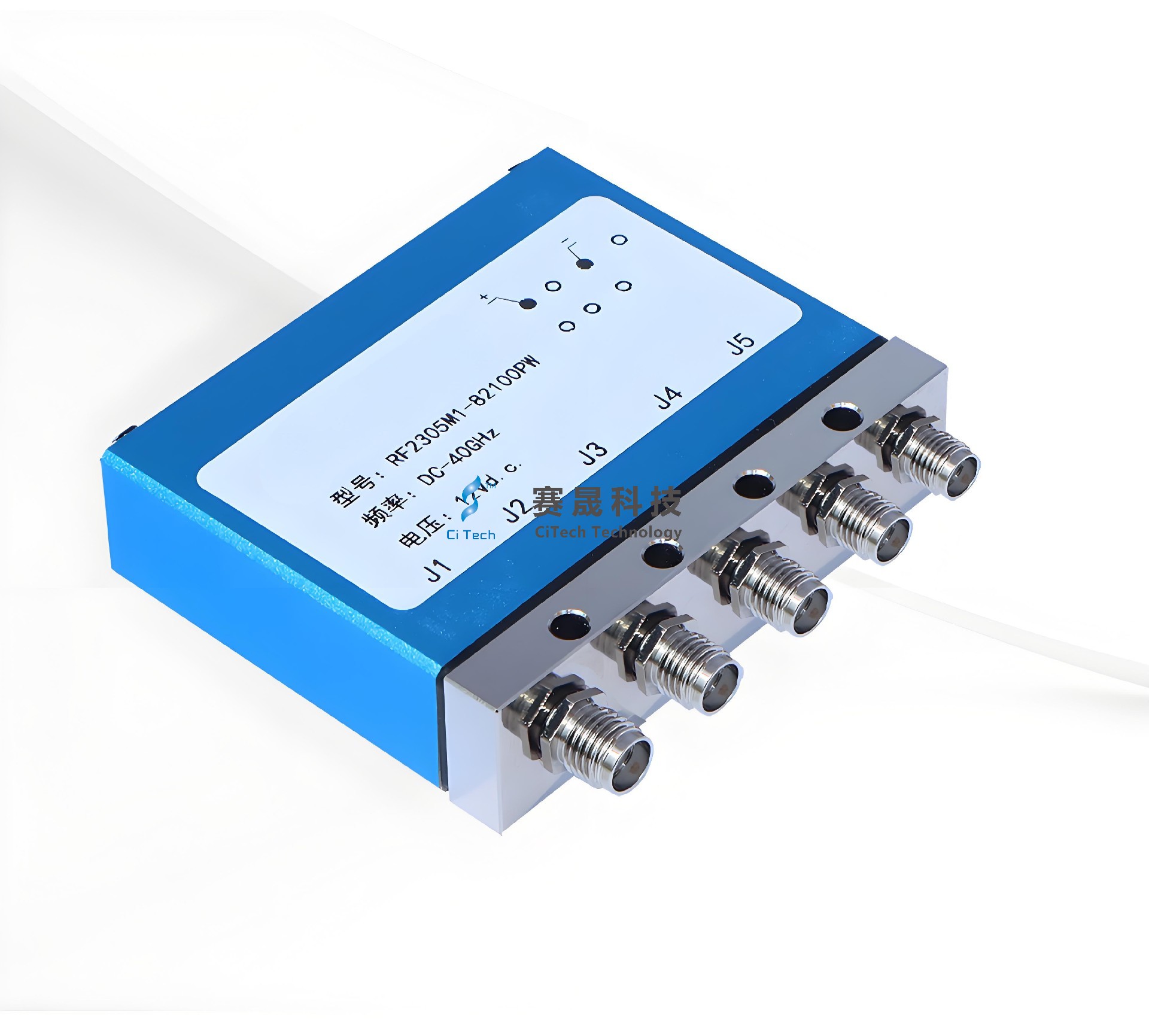

RF23 series microwave Switch

SP3T, Single Pole Double Throw reflective type, DC to 54GHz

The RF23 (DP3T) series offers various common types of connectors such as SMA, 2.92, 2.4, etc., with frequencies covering DC-54GHz; Provide reflective type; Provide a maximum lifespan of 200w cycles; We offer over 300 optional models including Latching/daiilsafe, Self cut off/none, 12/24/28Vd. c. driving voltage, TTL/common positive/common negative, Pin solder pins/D-Sub 9/mini D-Sub15, etc.

Key Features

·Long Service Life

SMA/2.92 interfaces: Up to 2 million cycles

2.4mm interfaces: Up to 1 million cycles

· High Frequency Coverage

SMA interface: DC-20GHz (with selectable bands: 20/18/12.4/6/3GHz)

2.92mm interface: DC-40GHz (with selectable bands: 40/26.5GHz)

2.4mm interface: Up to 54GHz (with selectable bands: 54/50GHz)

· High Repeatability (MAX-MIN)

SMA interface: ≤0.03dB

2.92mm interface: ≤0.05dB

2.4mm interface: ≤0.10dB

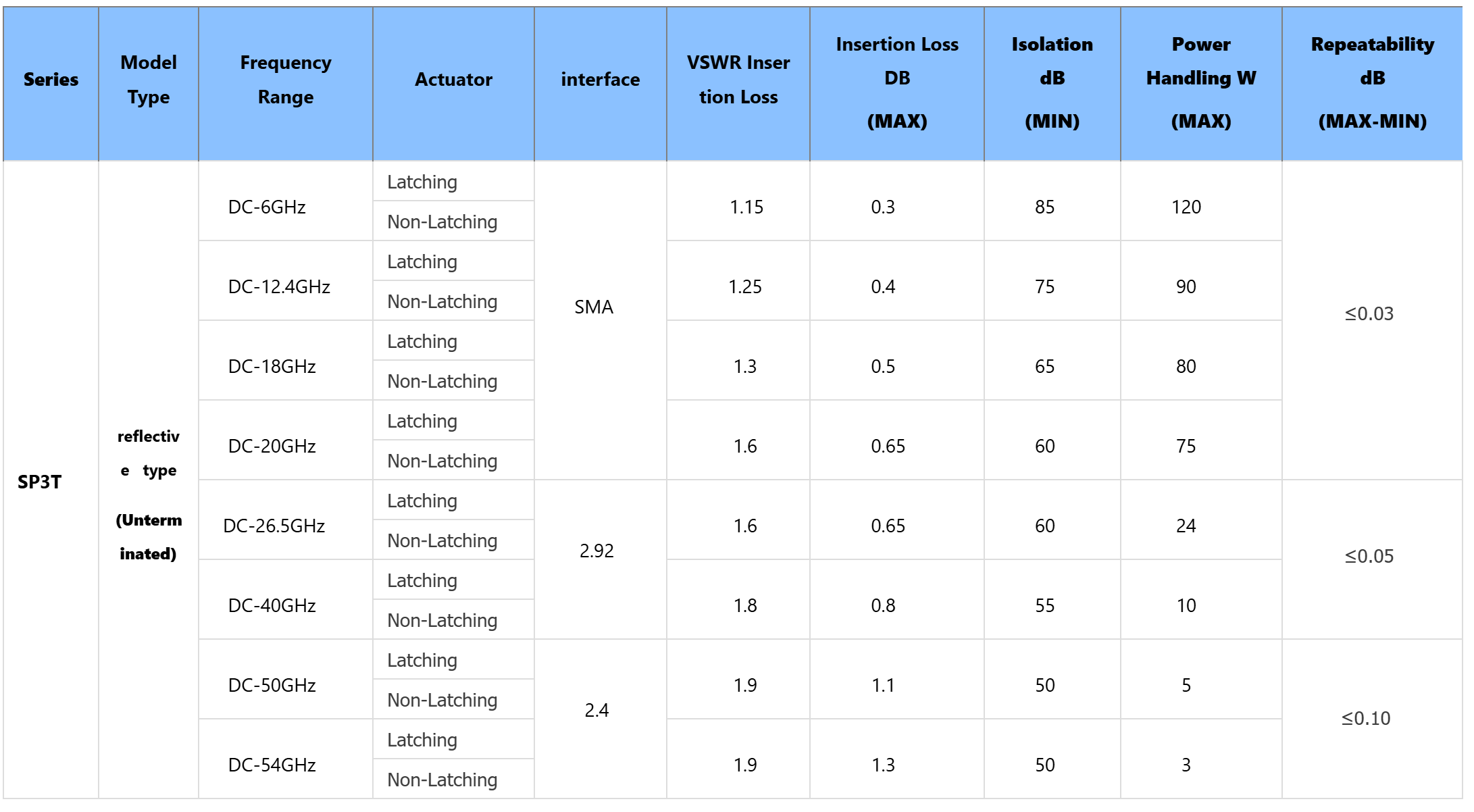

Models & Specifications

Note: The table provides typical RF/electrical parameters. For detailed specifications of specific models, refer to the product datasheet. Contact us for customized selection support.

                                                                                                          Selection Rules
