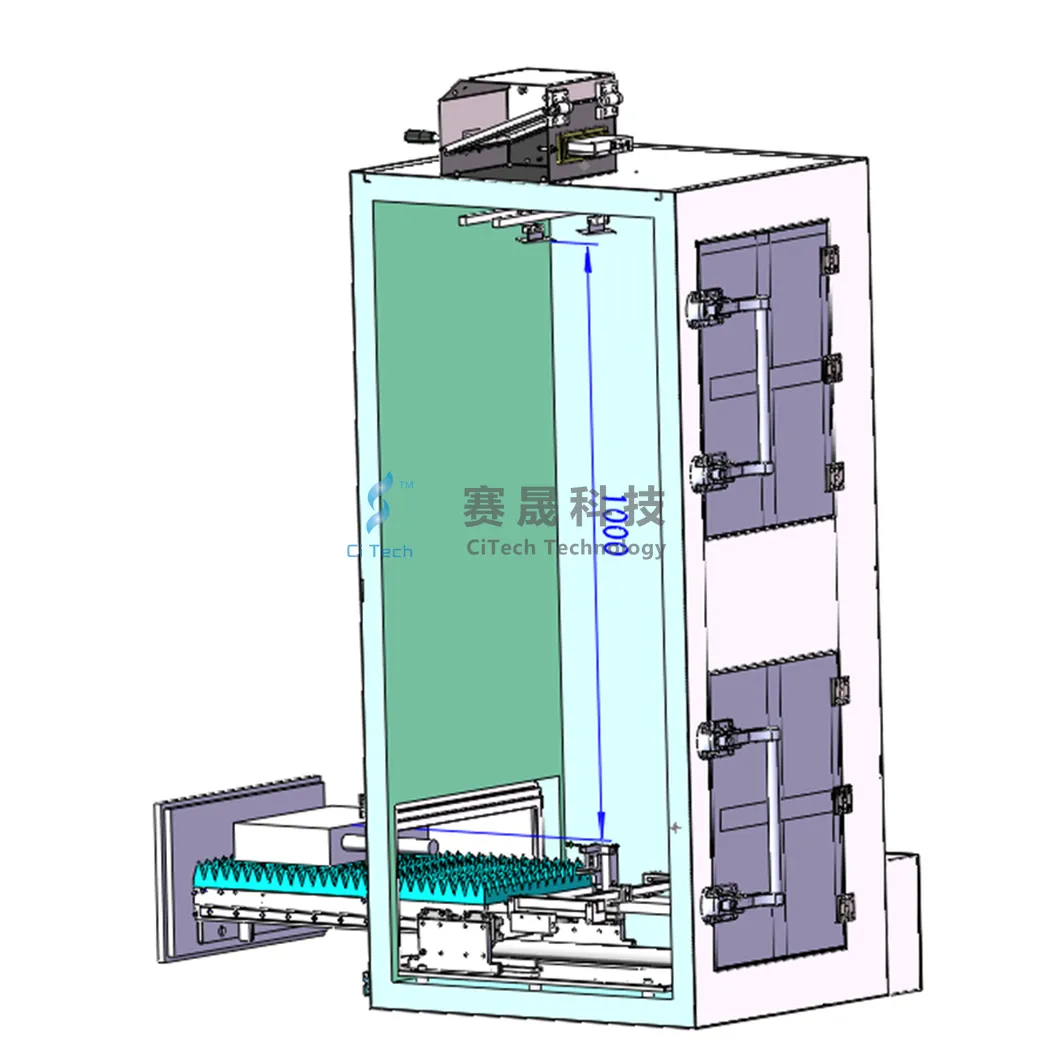

UWB Test Drawer-Type Shielding Box

UWB Test Drawer-Type Shielding Box

ST-SA1501

Isolation: 800 MHz - 8.5 GHz > 70 dB

The shielding box meets the test requirement of Isolation: 800 MHz - 8.5 GHz > 70 dB, ensuring stable RF performance testing of UWB products.

Product Description

Operation Mode: Automatic Key Operation (with Instructions), Compatible with Manipulator Testing

 Applications of UWB Shielding Box

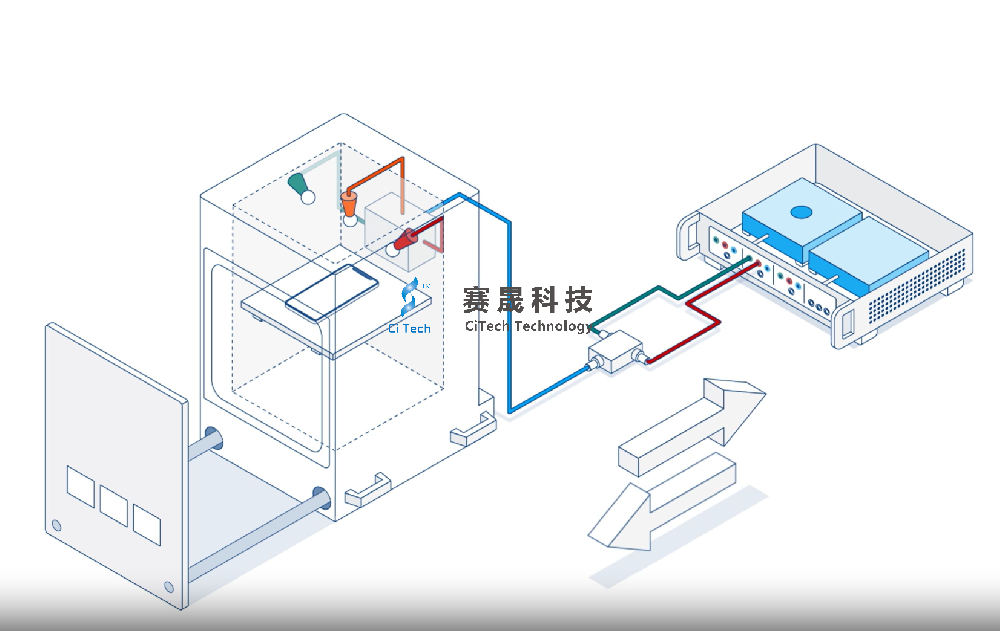

A UWB shieldbox is vital for testing UWB devices, as it creates a controlled electromagnetic environment. First, in R&D, a UWB shieldbox blocks external interference, letting engineers calibrate UWB signal parameters like pulse width and transmit power accurately—without a UWB shieldbox, data would be distorted. A UWB shielding box also supports multi-device communication tests, ensuring stable UWB networking checks. In production, a UWB shieldbox enables batch quality checks. Each UWB device undergoes EMC pre-testing in a UWB shieldbox to meet standards; a UWB shielding box ensures consistent test conditions, avoiding misjudgments. It works with automation tools for efficient UWB device screening. For certification, a UWB shieldbox is a must in labs. It meets strict standards for RF performance tests, and a UWB shielding box helps verify compliance with FCC/CE rules. In industries like auto/medical, a UWB shieldbox simulates real-world interference, and a UWB shielding box guarantees UWB device reliability—truly, a UWB shieldbox and UWB shielding box are indispensable for UWB testing.

Specification（shielded test enclosure）:

External Dimensions of UWB shieldbox: (L) 750mm × (W) 750mm × (H) 1545mm

Working Dimensions of UWB SHIELDBOX : (L) 650mm × (W) 550mm × (H) 1445mm

Shielding Isolation

800MHz~8.5GHz>70dB

Shielding Material

Microwave Absorber

Material

  metal plate

Surface Color

white  ( According to the customer request custom color)

I/O Connectors

SMA*4，RJ45*3,USB2.0*3,DC2.1*3（According to the customer   request）

Saisheng: A professional manufacturer of shielded enclosures （RF shielded box）and soundproof boxes（acoustic chamber）, providing customized RF shielded enclosures and soundproof boxes according to specific requirements.
