Manual shielding box

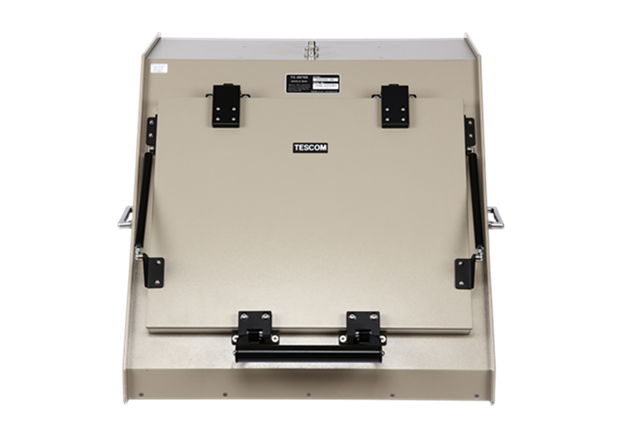

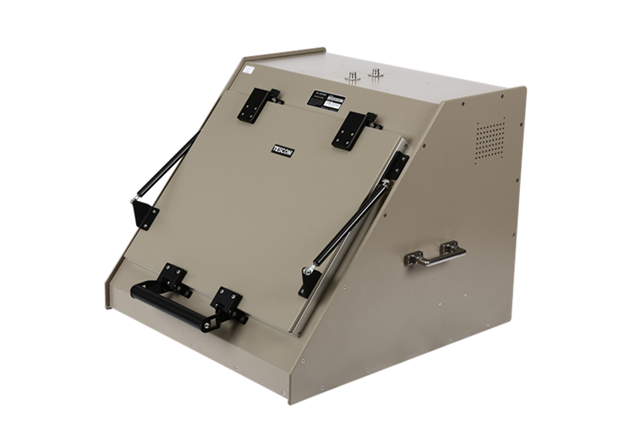

TC-5970C RF Shield Box

With wide frequency band supporting range from 100 to 6000 MHz, the TESCOM Shield Box can be applied to most of the current and future wireless communication technologies such as GSM, WCDMA, WiMAX, LTE, GNSS, Bluetooth, and Wi-Fi. Therefore, the Shield Box can be used for mobile device measurement using multi-frequency bands without limitations and is ideal for mobile device measurement by maintaining stable and effective shielding performance in all frequency bands.

order

◈ High RF Shielding
◈ Easy Opening/Closing of lid
◈ EMI filters on all Data and DC lines
◈ High performance absorber for radiation testing

◈ Customizable Data connections

◈ Door safety function when the door opens and closed

Dimensions

Inside : 530(W) x 540(D) x 420(H) mm, 195(D) mm Top side.

Outside : 620(W) x 680(D) x 531(H) mm, lid closed. 890(H) mm, lid open.

Frequency / Shielding effectivness (dB)

100 to 2000 MHz : > 70 dB

2000 to 3000 MHz : > 60 dB

3000 to 6000 MHz : > 55 dB
