Pneumatic shielding box

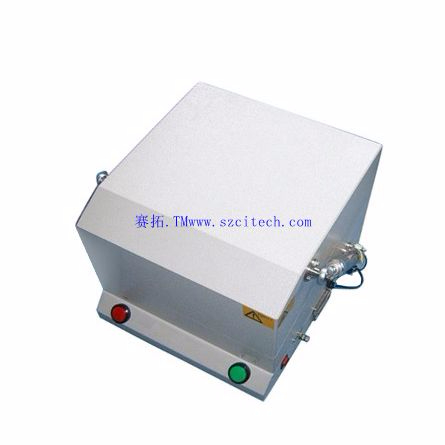

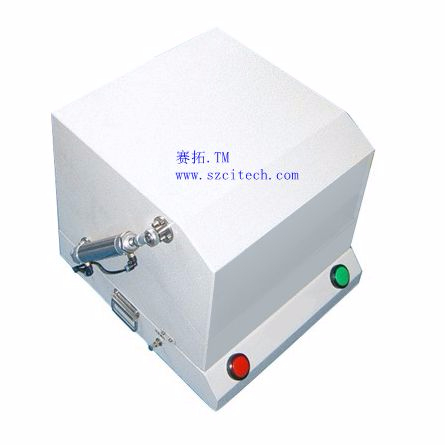

ST-SP001 RF SHIELDING BOX

Comprehensive wireless communications testing solutions , In the service of high-end technology, such as DAB/DMB、GSM、GPS、LTE、Wi-Fi、Wi-Max、 CDMA、CDMA2000、WCDMA、TD-SCDMA、3G/4G/5G mobile、WLAN、Bluetooth、PDA、Reflex、Wi-Fi Phone, UWB, Zigbee, RFID, TD-SCDMA, etc.

order

Application

ST-SP001 RF Shielded Box provides RF isolation and signal connections necessary for mobile testing. With the RF coupling accessory and filtered control ports, it makes an ideal solution for testing mobiles and small RF devices on the test benches of R&D , service QC and manufacturing

Features

★ Reliable high RF shielding up to 12GHz

★ Pneumatic control

★ Easily customizable to meet various test needs

★ Shock absorbers on lid

Specification

Inner Dimension	390(D) x 390(W) x 240(H) mm
Outer Dimension	510(D) x 540(W) x 350(H) mm
Shielding Isolation	800MHz~8.5GHz>75dB
Shielding Material	Microwave Absorber
Material	Aluminum
Weight	approx.20kg
Surface Color	Grey white ( According to the customer request custom color)
I/O Connectors	SMA-SMA4,RS2321,DC1,USB1,RJ45*1 （Can be customized according to needs）
